Weidmuller 1803880000 SAIB-M8-4P
- MPN: 1803880000
- PPN: WDM-1803880000
CAD
$13.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

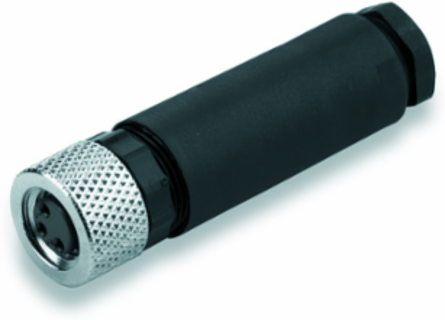

Sockets prefabricated to customer spec., M8, Female socket, straight
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 11.6 g |
|---|
Standards
| Certificate no. (cULus) | E307231 |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
| UNSPSC | 30-21-18-10 |
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 5 mm |
|---|---|
| Coding | none |
| Connection cross-section, min. | 0.14 mm² |
| Housing main material | PA |
| Number of poles | 4 |
| Pollution severity | 3 |
| Rated current | 4 A |
| Shield connection | No |
| Threaded ring material | Diecast zinc |
| Cable diameter, min. | 3.5 mm |
|---|---|
| Connection cross-section, max. | 0.5 mm² |
| Contact surface | Gold-plated |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 50 |
| Protection degree | IP67 |
| Rated voltage | 30 V |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | Screw connection |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature range, max. | 85 °C |
|---|---|
| Operating temperature, max. | 85 °C |
| Operating temperature range, min. | -25 °C |
|---|---|
| Operating temperature, min. | -40 °C |
