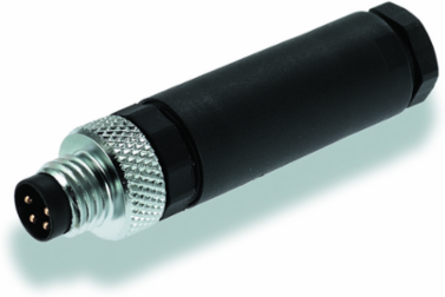

Weidmuller 1803850000 SAIS-M8-4P

MPN: 1803850000
PPN: WDM-1803850000

Spec sheet

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$12.22/ EA

Qty:

Loading add to cart quantity...

Description

Plugs prefabricated to customer spec., M8, pin, straight

Specifications

Approvals

Approvals: CULUS, EAC

UL File Number Search: E307231

ROHSConform

Dimensions And Weights

Net weight: 11 g

Standards

Certificate no. (cULus): E307231

Classifications

ETIM 6.0: EC002062

eClass 9.0: 27-44-01-02

eClass 10.0: 27-44-01-02

ETIM 7.0EC002635

eClass 9.127-44-01-03

UNSPSC30-21-18-10

Technical Data Customisable Plug-In Connectors

Cable diameter, max.: 5 mm

Coding: none

Connection cross-section, min.: 0.14 mm²

Housing main material: PA

Number of poles: 4

Pollution severity: 3

Rated current: 4 A

Shield connection: No

Threaded ring material: Diecast zinc

Cable diameter, min.3.5 mm

Connection cross-section, max.0.5 mm²

Contact surfaceGold-plated

Insulation strength108 Ω

Plugging cycles≥ 50

Protection degreeIP67

Rated voltage30 V

Temperature range of housing-40 … +85 ° C

Type of connectionScrew connection

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Temperatures

Operating temperature range, max.: 85 °C

Operating temperature, max.: 85 °C

Operating temperature range, min.-25 °C

Operating temperature, min.-40 °C

Downloads
