Weidmuller 1353750000 SAIB-5/11-1.5
- MPN: 1353750000
- PPN: WDM-1353750000
CAD
$16.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

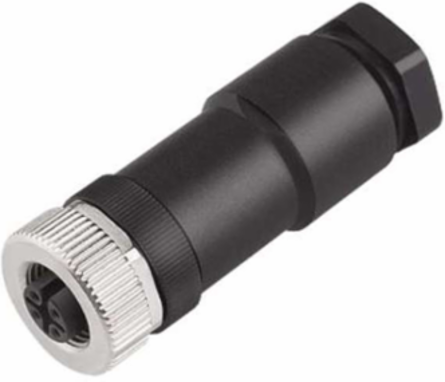

Sockets prefabricated to customer spec., M12, Female socket, straight
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 28 g
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 10 mm
- Cable glands
- PG 11
- Connection cross-section, max.
- 1.5 mm²
- Contact surface
- Gold-plated
- Insulation strength
- 108 Ω
- Plugging cycles
- ≥ 100
- Protection degree
- IP67
- Shield connection
- No
- Threaded ring material
- Diecast zinc
Cable diameter, min.8 mm
CodingA
Connection cross-section, min.0.5 mm²
Housing main materialPA

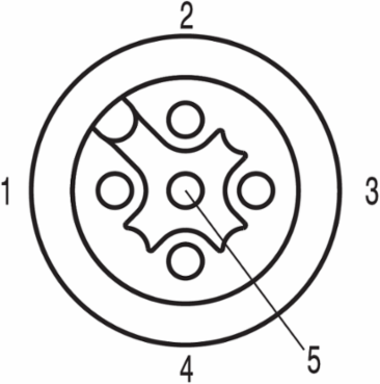

Number of poles5
Pollution severity3
Rated voltage60 V
Temperature range of housing-40 … +85 ° C
Type of connectionScrew connection
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 85 °C
Operating temperature, min.-40 °C
