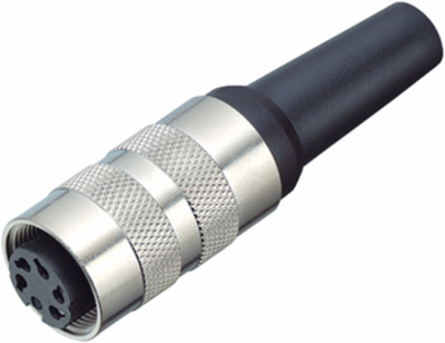

Weidmuller 1304450000 SAIB-M16-8/9
- MPN: 1304450000
- PPN: WDM-1304450000
CAD
$15.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plugs prefabricated to customer spec., M16, Female socket, straight
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 34 g |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 8 mm |
|---|---|
| Cable glands | PG 9 |
| Connection cross-section, max. | 0.25 mm² |
| Contact surface | Ag (silver) |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 500 |
| Protection degree | IP40 |
| Rated voltage | 60 V |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | Solder connection |
| Cable diameter, min. | 6 mm |
|---|---|
| Coding | none |
| Connection cross-section, min. | 0.14 mm² |
| Housing main material | PA |
| Number of poles | 8 |
| Pollution severity | 3 |
| Rated current | 5 A |
| Shield connection | No |
| Threaded ring material | Diecast zinc |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
