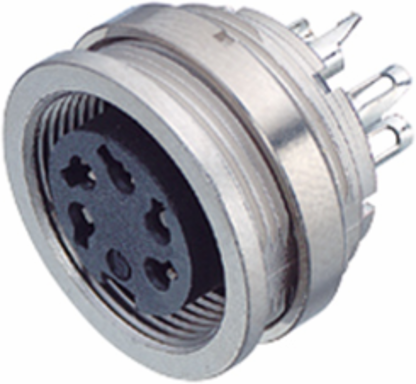

Weidmuller 1326740000 SAIE-M16B-7-L
- MPN: 1326740000
- PPN: WDM-1326740000
CAD
$12.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M16, M 18, Number of poles: 7
Documentation & Downloads
Specifications
General Data
| Cable glands | M 18 |
|---|---|
| Conductor cross-section, max. | 0.75 mm² |
| Connection thread | M16 |
| Core cross-section | 0.25 mm² |
| Number of poles | 7 |
| Rated current | 5 A |
| Shield connection | No |
| Type of connection | Solder connection |
| Coding | none |
|---|---|
| Conductor cross-section, min. | 0.14 mm² |
| Contact surface | Ag (silver) |
| Housing main material | Zinc diecast, nickel-plated |
| Protection degree | IP40 |
| Rated voltage | 125 V |
| Temperature range of housing | -40 … +85 ° C |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 11.6 g |
|---|
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 90 °C |
|---|
| Operating temperature, min. | -40 °C |
|---|
