Weidmuller 2451220000 SAIB-VSA-3P/24/9/SD
- MPN: 2451220000
- PPN: WDM-2451220000
CAD
$7.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

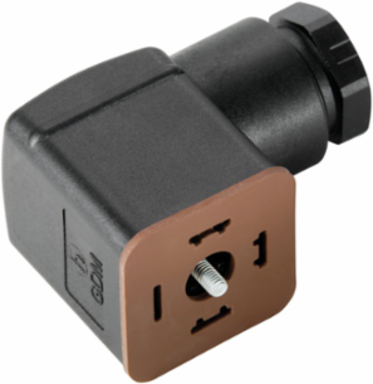

Valve plug-in connector, Socket, angled
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 26 g |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-05 |
| eClass 10.0 | 27-44-01-05 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-06-03-12 |
Technical Data Customisable Plug-In Connectors
| All valve plugs are fitted with protective circuits | Suppressor diode |
|---|---|
| Cable diameter, min. | 4.5 mm |
| Connection cross-section, max. | 1.5 mm² |
| Housing main material | PA 6 GF |
| Plugging cycles | ≤ 50 |
| Protection degree | IP65 |
| Rated voltage | 24 V |
| Temperature range of housing | -30…+90 °C |
| Cable diameter, max. | 7 mm |
|---|---|
| Coding | Design A (18 mm) |
| Contact surface | CuSn |
| Number of poles | 3 |
| Pollution severity | 3 |
| Rated current | 10 A |
| Shield connection | No |
| Type of connection | Screw connection |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
