Weidmuller 1873110000 SAIB-VSA-3P/230/9/LD
- MPN: 1873110000
- PPN: WDM-1873110000
CAD
$6.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

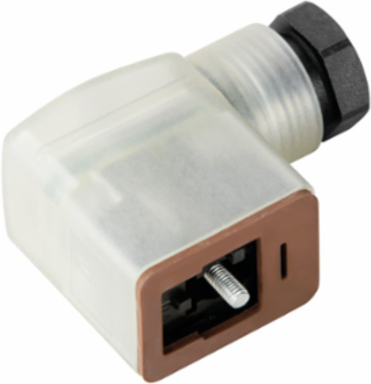

Valve plug, Socket, angled
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 25 g
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-05
- eClass 10.0
- 27-44-01-05
ETIM 7.0EC002635
eClass 9.127-06-03-12
UNSPSC30-21-18-10
Technical Data Customisable Plug-In Connectors
- All valve plugs are fitted with protective circuits
- Varistor
- Cable diameter, min.
- 6 mm
- Coding
- Design A (18 mm)
- Connection cross-section, min.
- 0.34 mm²
- Housing main material
- PA 6 GF
- Number of poles
- 3
- Pollution severity
- 3
- Rated current
- 10 A
- Temperature range of housing
- -25…+85 °C
Cable diameter, max.8 mm
Cable glandsPG 9
Connection cross-section, max.1.5 mm²
Contact surfaceNi
Insulation strength108 Ω
Plugging cycles≤ 50
Protection degreeIP65
Rated voltage230 V
Type of connectionScrew connection
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 85 °C
- Operating temperature, max.
- 85 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-25 °C
