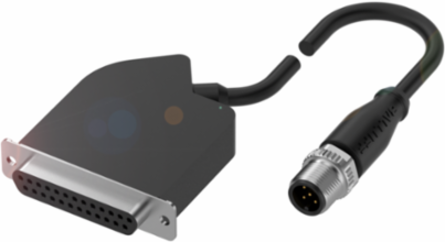

Balluff BNI IOL-751-V10-K007 IO-Link Valve Interface, 4-Pin Connection, 24 Outputs, IP40 Rating
Balluff BNI IOL-751-V10-K007 IO-Link Valve Interface, 4-Pin Connection, 24 Outputs, IP40 Rating
- MPN: BNI IOL-751-V10-K007
- PPN: BAL-BNI006P
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$269.57/ EA
Specifications
Specifications
- Country of Origin
- Germany
- Application
- SMC VQC 1000/2000/4000
- Operating voltage Ub
- 18...30.2 VDC
- Cable length L
- 0.6 m
- Current sum UA, actuator
- 4 A
- Housing material
- PA
- Ambient temperature
- -5...55 °C
- Data transfer rate
- COM2 (38.4 kBaud)
- Process data out
- 4 bytes
VersionPower Aux valve terminal connector
InterfaceIO-Link 1.1
Connection (COM 1)M12x1-Male, 5-pin, A-coded
Outputs, number24
Function4-pin connection; Power Aux on Pin 2
Dimension53 x 61 x 12.5 mm
IP ratingIP40, plugged in
Process data cycle min.3.5 ms
Downloads
