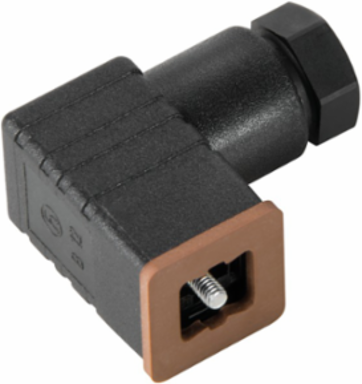

Weidmuller 1873230000 SAIB-VSCD-4P/250/7-OB
- MPN: 1873230000
- PPN: WDM-1873230000
CAD
$5.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Valve plug, Socket, angled
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 12 g |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-05 |
| eClass 10.0 | 27-44-01-05 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-06-03-12 |
| UNSPSC | 30-21-18-10 |
Technical Data Customisable Plug-In Connectors
| All valve plugs are fitted with protective circuits | Without circuitry |
|---|---|
| Cable diameter, min. | 4 mm |
| Coding | DIN design C (8 mm) |
| Connection cross-section, min. | 0.34 mm² |
| Housing main material | PA 6 GF |
| Number of poles | 4 |
| Pollution severity | 3 |
| Rated current | 10 A |
| Type of connection | Screw connection |
| Cable diameter, max. | 6 mm |
|---|---|
| Cable glands | PG 7 |
| Connection cross-section, max. | 1.5 mm² |
| Contact surface | Ni |
| Insulation strength | 108 Ω |
| Plugging cycles | ≤ 50 |
| Protection degree | IP65 |
| Temperature range of housing | -25…+85 °C |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature range, max. | 85 °C |
|---|---|
| Operating temperature, max. | 85 °C |
| Operating temperature range, min. | -25 °C |
|---|---|
| Operating temperature, min. | -25 °C |
