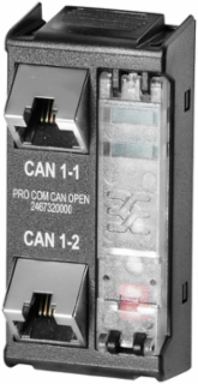

Weidmuller 2467320000 PRO COM CAN OPEN
- MPN: 2467320000
- PPN: WDM-2467320000
CAD
$113.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Communication module
Documentation & Downloads
Specifications
General Data
| Operating temperature | -25 °C...70 °C |
|---|
| Protection degree | IP20 |
|---|
Approvals
| Approvals | DNV GL |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 35 mm |
|---|---|
| Height | 74.4 mm |
| Depth | 33.6 mm |
| Weight | 36 g |
| Width (inches) | 1.378 inch |
|---|---|
| Height (inches) | 2.929 inch |
| Depth (inches) | 1.323 inch |
| Net weight | 76 g |
Classifications
| ETIM 6.0 | EC001604 |
|---|---|
| eClass 9.0 | 27-24-26-08 |
| eClass 10.0 | 27-24-26-08 |
| ETIM 7.0 | EC001604 |
|---|---|
| eClass 9.1 | 27-04-07-92 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Data
| Connection type | 2 x RJ45 plug-in connectors |
|---|---|
| Interface | PROtop interconnection interface |
| Field bus protocol | CANopen |
|---|---|
| Module type | plug-on module |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -25 °C...70 °C |
| Operating temperature, min. | -25 °C |
|---|
