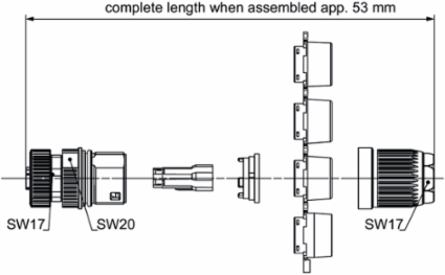

Weidmuller 2525620000 SAIBC-M-5S-M12-L-COD
- MPN: 2525620000
- PPN: WDM-2525620000
CAD
$29.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

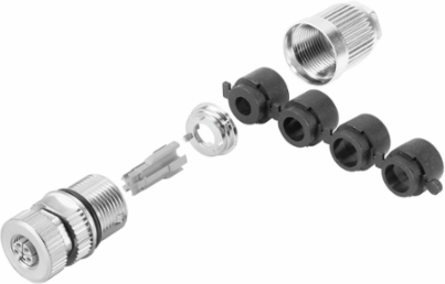

Power connector, M12 socket
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 39 g |
|---|
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 13.5 mm |
|---|---|
| Coding | L |
| Connection cross-section, min. | 0.75 mm² |
| Housing main material | Zinc diecast |
| Plugging cycles | 500 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 63 V |
| Temperature range of housing | -40 … +85 ° C |
| Cable diameter, min. | 5.8 mm |
|---|---|
| Connection cross-section, max. | 1.5 mm² |
| Contact surface | Gold-plated |
| Number of poles | 5 |
| Pollution severity | 3 |
| Rated current | 16 A |
| Shield connection | Yes |
| Type of connection | Crimp connection |
Product Information
| Product information | Enclosures, inserts and crimp contacts need to be ordered separately. |
|---|
