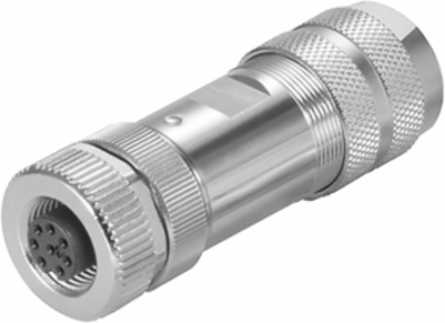

Weidmuller 1892130001 SAIBM-4/8S-M12 4P D-ZF
- MPN: 1892130001
- PPN: WDM-1892130001
CAD
$29.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sockets prefabricated to customer spec., M12, Female socket, straight
Documentation & Downloads
Specifications
Electrical Properties
- Insulation strength
- 108 Ω
Rated voltage250 V
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 47 g
Standards
- Connector standard
- IEC 61076-2-101
General Info
- Number of poles
- 4
- Connection thread
- M12
- Protection degree
- IP67
Housing main materialCuZn
Contact surfaceGold-plated
Plugging cycles≥ 100
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
UNSPSC30-21-18-01
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 8 mm
- Cable glands
- PG 9
- Connection cross-section, max.
- 0.5 mm²
- Contact surface
- Gold-plated
- Insulation strength
- 108 Ω
- Plugging cycles
- ≥ 100
- Protection degree
- IP67
- Rated voltage
- 250 V
- Temperature range of housing
- -40 … +85 ° C
- Type of connection
- Tension-clamp connection
Cable diameter, min.6 mm
CodingD
Connection cross-section, min.0.14 mm²
Housing main materialCuZn
Number of poles4
Pollution severity3
Rated current4 A
Shield connectionYes
Threaded ring materialDiecast zinc
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, min.
- -40 °C
