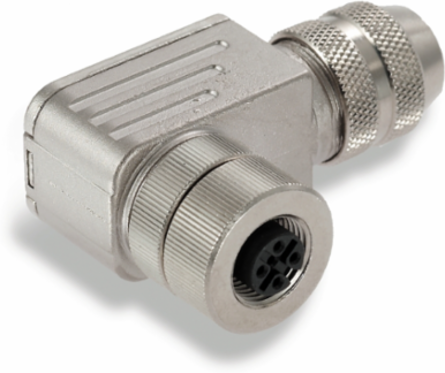

Weidmuller 1139330000 SAIBW-4/8S-M12 4P D-ZF
- MPN: 1139330000
- PPN: WDM-1139330000
CAD
$30.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sockets prefabricated to customer spec., M12, Socket, angled
Documentation & Downloads
Specifications
Electrical Properties
| Insulation strength | 108 Ω |
|---|
| Rated voltage | 250 V |
|---|
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 64 g |
|---|
Standards
| Connector standard | IEC 61076-2-101 |
|---|
General Info
| Number of poles | 4 |
|---|---|
| Connection thread | M12 |
| Protection degree | IP67 |
| Housing main material | CuZn |
|---|---|
| Contact surface | Gold-plated |
| Plugging cycles | ≥ 100 |
Classifications
| ETIM 6.0 | EC002062 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Technical Data Customisable Plug-In Connectors
| Cable diameter, max. | 8 mm |
|---|---|
| Cable glands | PG 9 |
| Connection cross-section, max. | 0.5 mm² |
| Contact surface | Gold-plated |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 |
| Rated voltage | 250 V |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | Tension-clamp connection |
| Cable diameter, min. | 6 mm |
|---|---|
| Coding | D |
| Connection cross-section, min. | 0.14 mm² |
| Housing main material | CuZn |
| Number of poles | 4 |
| Pollution severity | 3 |
| Rated current | 4 A |
| Shield connection | Yes |
| Threaded ring material | Diecast zinc |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, min. | -40 °C |
|---|
