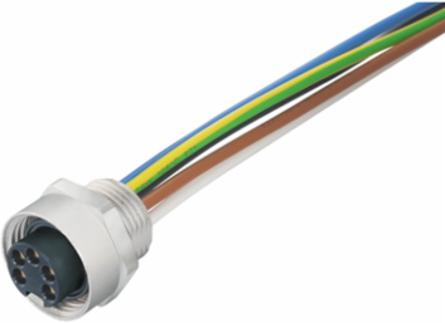

Weidmuller 1471520000 SAIE-7/8-B-4-0.2U-M20
- MPN: 1471520000
- PPN: WDM-1471520000
CAD
$19.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, 7/8", M 20, Number of poles: 4
Documentation & Downloads
Specifications
General Data
| Cable glands | M 20 |
|---|---|
| Connection thread | 7/8" |
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast, nickel-plated |
| Plugging cycles | ≥ 100 |
| Rated current | 8 A (4- and 5-pole), 10 A (3-pole) |
| Strand / cable length | 0.2 m |
| Type of connection | Socket connector |
| Coding | none |
|---|---|
| Contact material | CuZn |
| Core cross-section | 0.75 mm² |

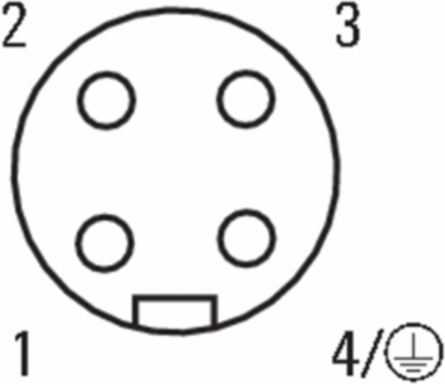

| Number of poles | 4 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 300 V |
| Temperature range of housing | -25…+85 °C |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|

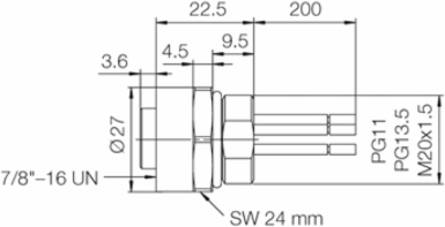

Dimensions And Weights
| Net weight | 42 g |
|---|
Classifications
| ETIM 6.0 | EC002635 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
