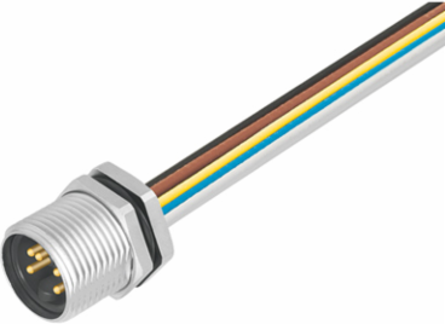

Weidmuller 2577160000 SAIE-7/8S-4-0.4U-H
- MPN: 2577160000
- PPN: WDM-2577160000
CAD
$20.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, 7/8", 7/8", Number of poles: 4
Specifications
General Data
| Cable glands | 7/8" |
|---|---|
| Connection thread | 7/8" |
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast, nickel-plated |
| Plugging cycles | ≥ 100 |
| Rated current | 8 A |
| Strand / cable length | 0.4 m |
| Type of connection | Pin |
| Coding | none |
|---|---|
| Contact material | CuZn |
| Core cross-section | 0.75 mm² |

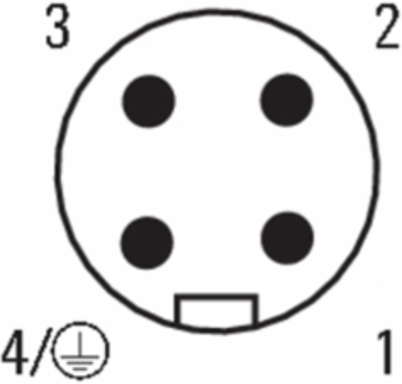

| Number of poles | 4 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 300 V |
| Temperature range of housing | -25…+85 °C |
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 66 g |
|---|
Standards
| Certificate No. (cURus) | E307231 |
|---|
Classifications
| ETIM 6.0 | EC002635 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
