Weidmuller 1418050000 SAIE-7/8S-4-0.2U-M20
- MPN: 1418050000
- PPN: WDM-1418050000
CAD
$19.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

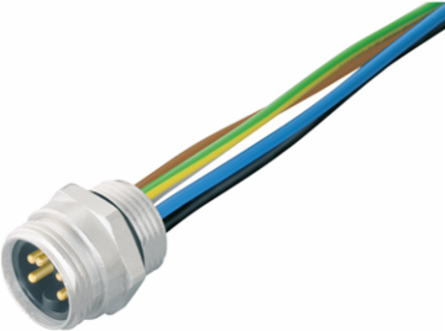

Built-in plugs, 7/8", M 20, Number of poles: 4
Documentation & Downloads
Specifications
General Data
- Cable glands
- M 20
- Connection thread
- 7/8"
- Contact surface
- Gold-plated
- Housing main material
- Zinc diecast, nickel-plated
- Plugging cycles
- ≥ 100
- Rated current
- 8 A (4- and 5-pole), 10 A (3-pole)
- Strand / cable length
- 0.2 m
- Type of connection
- Pin
Codingnone
Contact materialCuZn
Core cross-section0.75 mm²

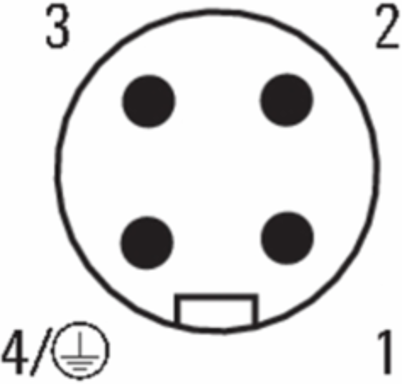

Number of poles4
Protection degreeIP67, when screwed in
Rated voltage300 V
Temperature range of housing-25…+85 °C
Approvals
- Approvals
- EAC
ROHSConform

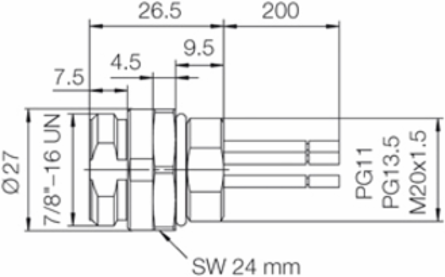

Dimensions And Weights
- Net weight
- 30 g
Classifications
- ETIM 6.0
- EC002635
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
