Weidmuller 1292140150 SAIL-7/8BG-4-1.5U

MPN: 1292140150
PPN: WDM-1292140150

$38.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

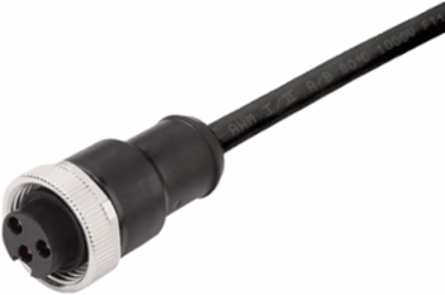

Sensor/actuator line, One end without connector, 7/8", Number of poles : 4 (3 + PE), 1.5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS
UL File Number Search	E307231

ROHS	Conform

Dimensions And Weights

Net weight	194 g

Standards

Certificate no. (cULus)	E307231

General Technical Data

Version	Female socket, straight
Housing main material	PUR
Coding	none
Contact surface	Au (Gold)
Rated voltage	300 V
Insulation strength	108 Ω
Plugging cycles	≥ 100
jumpered	No

Connection thread	7/8"
Threaded ring material	Diecast zinc
Protection degree	IP68, when screwed in
LED	No
Rated current	9 A
Temperature range of housing	-25…+80 °C
Pollution severity	3

Technical Specifications For Cable

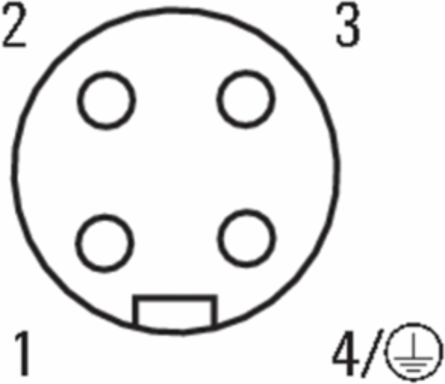

Number of poles	4 (3 + PE)

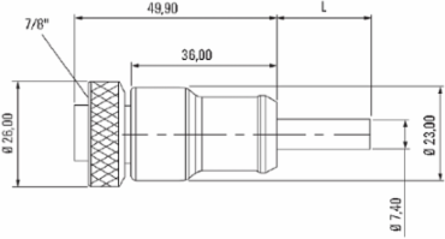

Outside diameter	8 ± 0.2 mm
Shielded	No
Colour coding	brown, white, blue, black
Sheathing colour	black
Temperature range, moving	-20...80 °C
Outer cladding in accordance with UL AWM style	20234 (80 °C / 1000 V)
Torsion resistance	0 °/m
Resistant to welding beads	No

Core cross-section	1.5 mm²
Cable length	1.5 m
Insulation	TPM
Sheath material	PUR
Halogen	No
Temperature range, stationary	-50...80 °C
Suitable for cable carriers	No
Bending radius, min., moving	7.5 x cable diameter
Configurable cable length	No
