Weidmuller 0107260000 SAK 2.5/TC CH
Weidmuller 0107260000 SAK 2.5/TC CH
- MPN: 0107260000
- PPN: WDM-0107260000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$28.10/ EA
Description

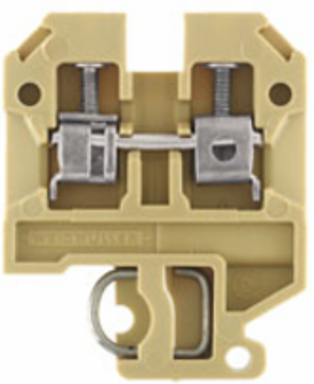

SAK Series, Thermocouple terminal, Rated cross-section: 2.5 mm², Screw connection, Direct mounting
Specifications
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Width
- 6 mm
- Height
- 36.5 mm
- Depth
- 46.5 mm
- Net weight
- 8.63 g
Width (inches)0.236 inch
Height (inches)1.437 inch
Depth (inches)1.831 inch
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceDirect mounting
Open sidesright
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourbeige / yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000904
- eClass 9.0
- 27-14-11-42
- eClass 10.0
- 27-14-11-42
ETIM 7.0EC000904
eClass 9.127-14-11-42
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, Thermocouple, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 32
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 4 mm²
Rating Data
- Rated cross-section
- 2.5 mm²
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
- Pollution severity
- 3
StandardsIEC 60584, IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x0.77 W
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping screw
- M 2.5
- Number of connections
- 2
- Tightening torque, max.
- 0.6 Nm
- Type of connection
- Screw connection
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.2.5 mm²
Connection directionon side
Stripping length10 mm
Tightening torque, min.0.4 Nm
Wire connection cross-section, solid core, max.2.5 mm²
