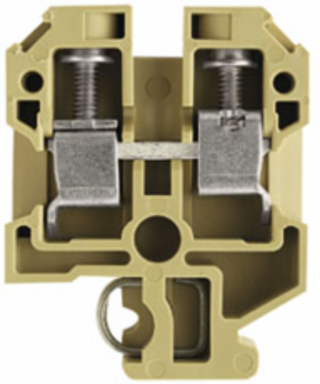

Weidmuller 0193260000 SAK 6N
- MPN: 0193260000
- PPN: WDM-0193260000
CAD
$4.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SAK Series, Feed-through terminal, Rated cross-section: 6 mm², Screw connection, beige, Direct mounting
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, CURUSEX, DNV GL, EAC, KEMAATEX, KEMAKEUR, LLOYDSREG, MARITREG, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 8 mm
- Height
- 40 mm
- Depth
- 49 mm
- Net weight
- 14.19 g
Width (inches)0.315 inch
Height (inches)1.575 inch
Depth (inches)1.929 inch
Csa Rating Data
- Certificate No. (CSA)
- 154685-1501714
- Voltage size C (CSA)
- 600 V
- Wire cross section min. (CSA)
- 20 AWG
Current size C (CSA)47 A
Wire cross section max. (CSA)8 AWG
Additional Technical Data
- Explosion-tested version
- Yes
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceDirect mounting
Open sidesright
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourbeige / yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
UNSPSC30-21-18-11
System Specifications
- End cover plate required
- Yes
- Number of levels
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- N-function
- No
- PEN function
- No
Number of potentials1
Number of clamping points per level2
Levels cross-connected internallyNo
RailTS 32
PE functionNo
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -50 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.100 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 6 mm²
Rating Data
- Rated cross-section
- 6 mm²
- Rated current
- 41 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 1.31 W
- Pollution severity
- 3
Rated voltage800 V
Current at maximum wires57 A
Volume resistance according to IEC 60947-7-x0.78 mΩ
Rated impulse withstand voltage8 kV
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- KEMA97ATEX1798U
- Current (ATEX)
- 36 A
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Max. voltage (ATEX)550 V
Wire cross section max. (ATEX)6 mm²
Marking EN 60079-7Ex eb II C Gb
Conductors For Clamping (Rated Connection)
- Blade size
- 4.0 x 0.8 mm
- Clamping range, min.
- 0.33 mm²
- Connection cross-section, stranded, max.
- 6 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 1.6 Nm
- Torque level with DMS electric screwdriver
- 3
- Twin wire-end ferrules, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 22
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 6 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.10 mm²
Clamping screwM 3.5
Connection cross-section, stranded, min.0.5 mm²
Gauge to IEC 60947-1A5
Stripping length12 mm
Tightening torque, min.0.8 Nm
Twin wire-end ferrules, max.4 mm²
Type of connectionScrew connection
Wire connection cross section, finely stranded, max.10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire connection cross-section, solid core, max.10 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 22 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Voltage size C (UR)
- 600 V
Conductor size Factory wiring max. (UR)8 AWG
Conductor size Field wiring max. (UR)8 AWG
Current size C (UR)40 A
