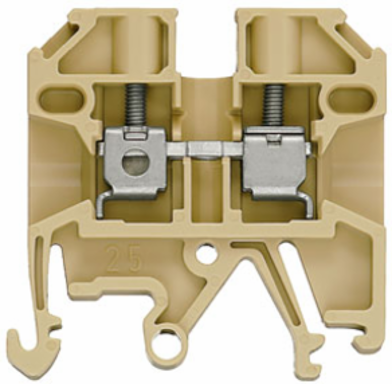

Weidmuller 0218660000 SAK 2.5/EN
Weidmuller 0218660000 SAK 2.5/EN
- MPN: 0218660000
- PPN: WDM-0218660000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$2.41/ EA
Specifications
Approvals
- Approvals
- CE
- Approvals
- EAC
- Approvals
- INMETRO
- Approvals
- KEMAKEUR
- ROHS
- Conform
ApprovalsCSA
ApprovalsIECEXKEM
ApprovalsKEMAATEX
ApprovalsUR
UL File Number SearchE60693
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 41.5 mm
- Depth
- 40.5 mm
- Net weight
- 7.2 g
Width (inches)0.24 inch
Height (inches)1.634 inch
Depth (inches)1.594 inch
Csa Rating Data
- Certificate No. (CSA)
- 12400-129
- Voltage size C (CSA)
- 600 V
- Wire cross section min. (CSA)
- 26 AWG
Current size C (CSA)25 A
Wire cross section max. (CSA)10 AWG
General Ordering Data
- Delivery status
- This article will no longer be available in the future.
- Alternative product
- 1020000000
- Order No.
- 0218660000
- GTIN (EAN)
- 4008190010171
Available until2018-12-31
TypeSAK 2.5/EN
VersionSAK Series, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection
Qty.100 pc(s).
Additional Technical Data
- Explosion-tested version
- Yes
- Open sides
- right
Number of similar terminals1
Type of mountingSnap-on
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourbeige / yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 3.0
- EC000897
- ETIM 5.0
- EC000897
- UNSPSC
- 30-21-18-11
- eClass 6.2
- 27-14-11-20
- eClass 8.1
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
ETIM 4.0EC000897
ETIM 6.0EC000897
eClass 5.127-14-11-20
eClass 7.127-14-11-20
eClass 9.027-14-11-20
Product Information
- Descriptive text technical data
- With twin wire-end ferrules ZH 0.5 to ZH 1.5, the rated voltage is 690 V.
System Specifications
- Version
- Screw connection, for screwable cross-connection, One end without connector
- Number of potentials
- 1
- No. of clamping points per level
- 2
- Levels cross-connected internally
- No
- Mounting rail
- TS 35, TS 32
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Continuous operating temp., min.
- -50 °C
Continuous operating temp., max.100 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 4 mm²
Rating Data
- Certificate No. (ATEX)
- KEMA97ATEX1798U
- ATEX certificate
- KEMA97ATEX1798U_e.pdf
- IEC Ex certificate
- IECEXKEM06.0014U_e.pdf
- Current (ATEX)
- 21 A
- Max. voltage (IECEX)
- 690 V
- Wire cross section max. (IECEX)
- 2.5 mm²
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
- Rated voltage
- 800 V
- Current at maximum wires
- 41 A
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
- Pollution severity
- 3
ATEX certificateIECEXKEM06.0014U
Certificate No. (IECEX)IECEXKEM06.0014U
Max. voltage (ATEX)690 V
Wire cross section max. (ATEX)2.5 mm²
Current (IECEX)21 A
Voltage, cross-connectionCrossConnectionGuide.pdf
Marking EN 60079-7Ex e II
Rated cross-section2.5 mm²
Rated current24 A
StandardsIEC 60947-7-1
Rated impulse withstand voltage8 kV
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- KEMA97ATEX1798U
- ATEX certificate
- KEMA97ATEX1798U_e.pdf
- IEC Ex certificate
- IECEXKEM06.0014U_e.pdf
- Current (ATEX)
- 21 A
- Max. voltage (IECEX)
- 690 V
- Wire cross section max. (IECEX)
- 2.5 mm²
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
ATEX certificateIECEXKEM06.0014U
Certificate No. (IECEX)IECEXKEM06.0014U
Max. voltage (ATEX)690 V
Wire cross section max. (ATEX)2.5 mm²
Current (IECEX)21 A
Voltage, cross-connectionCrossConnectionGuide.pdf
Marking EN 60079-7Ex e II
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, rated connection, min.
- 0.13 mm²
- Connection direction
- on side
- Gauge to IEC 60947-1
- A3
- Stripping length
- 10 mm
- Tightening torque, min.
- 0.4 Nm
- Twin wire-end ferrules, max.
- 1.5 mm²
- Type of connection
- Screw connection
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.
- 0.5 mm²
- Wire connection cross section, solid core max. rated connection
- 6 mm²
- Wire connection cross section, stranded, rated connection, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max.
- 4 mm²
Clamping range, rated connection, max.6 mm²
Clamping screwM 2.5
Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min.0.5 mm²
Number of connections2
Tightening torque, max.0.6 Nm
Torque level with DMS electric screwdriver1
Twin wire-end ferrules, min.0.5 mm²
Wire connection cross section AWG, max.AWG 12
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.4 mm²
Wire connection cross section, finely stranded, max.4 mm²
Wire connection cross section, solid core, min. rated connection0.5 mm²
Wire connection cross section, stranded, rated connection, min.0.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 22 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Voltage size C (UR)
- 600 V
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
Current size C (UR)20 A
