Weidmuller 0212860000 SAK 6/EN
- MPN: 0212860000
- PPN: WDM-0212860000
CAD
$3.65
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

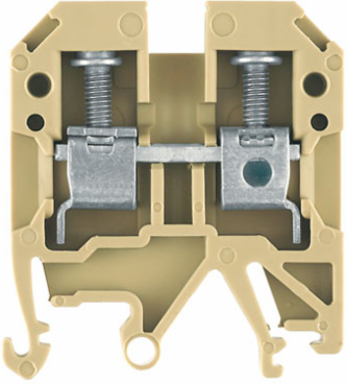

SAK 6/EN
Specifications
Approvals
| Approvals | CE |
|---|---|
| Approvals | EAC |
| Approvals | IECEXKEM |
| Approvals | KEMAATEX |
| Approvals | UR |
| UL File Number Search | E60693 |
| Approvals | CSA |
|---|---|
| Approvals | EXIKONF |
| Approvals | INMETRO |
| Approvals | KEMAKEUR |
| ROHS | Conform |
Dimensions And Weights
| Width | 8 mm |
|---|---|
| Height | 40 mm |
| Depth | 47.5 mm |
| Net weight | 14.17 g |
| Width (inches) | 0.315 inch |
|---|---|
| Height (inches) | 1.575 inch |
| Depth (inches) | 1.87 inch |
Dimensions
| Width | 8 mm |
|---|---|
| Height | 40 mm |
| Depth | 47.5 mm |
| Net weight | 14.17 g |
| TS 35 offset | 2 mm |
| Width (inches) | 0.315 inch |
|---|---|
| Height (inches) | 1.575 inch |
| Depth (inches) | 1.87 inch |
| TS 15 offset | 21 mm |
Csa Rating Data
| Certificate No. (CSA) | 154685-1501714 |
|---|---|
| Voltage size C (CSA) | 600 V |
| Wire cross section min. (CSA) | 26 AWG |
| Current size C (CSA) | 47 A |
|---|---|
| Wire cross section max. (CSA) | 6 AWG |
General Ordering Data
| Type | SAK 6/EN |
|---|---|
| Version | SAK Series, Feed-through terminal, Rated cross-section: 6 mm², Screw connection |
| Qty. | 100 pc(s). |
| Order No. | 0212860000 |
|---|---|
| GTIN (EAN) | 4008190065553 |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Open sides | right |
| Number of similar terminals | 1 |
|---|---|
| Type of mounting | Snap-on |
Material Data
| Material | PA 66 |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | beige / yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 3.0 | EC000897 |
|---|---|
| ETIM 5.0 | EC000897 |
| UNSPSC | 30-21-18-11 |
| eClass 6.2 | 27-14-11-20 |
| eClass 8.1 | 27-14-11-20 |
| eClass 9.1 | 27-14-11-20 |
| ETIM 4.0 | EC000897 |
|---|---|
| ETIM 6.0 | EC000897 |
| eClass 5.1 | 27-14-11-20 |
| eClass 7.1 | 27-14-11-20 |
| eClass 9.0 | 27-14-11-20 |
Product Information
| Descriptive text ordering data | With AWG 6 and H07V-R10 conductors, an increased MD torque of 1.4 to 1.6 Nm must be applied. |
|---|---|
| Descriptive text accessories | When used with twin wire-end ferrules ZH 0.5 - ZH 4, the rated voltage is 690 V. |
| Descriptive text technical data | Tightening torque for AWG 8-7 and AWG 8-19 is 1.2 - 1.4 Nm |
|---|
System Specifications
| Version | Screw connection, for screwable cross-connection, One end without connector |
|---|---|
| Number of potentials | 1 |
| No. of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Mounting rail | TS 35, TS 32 |
| PE function | No |
| End cover plate required | Yes |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Continuous operating temp., min. | -50 °C |
|---|
| Continuous operating temp., max. | 100 °C |
|---|
Rating Data
| Certificate No. (ATEX) | KEMA97ATEX1798U |
|---|---|
| ATEX certificate | KEMA97ATEX1798U_e.pdf |
| IEC Ex certificate | IECEXKEM06.0014U_e.pdf |
| Current (ATEX) | 36 A |
| Max. voltage (IECEX) | 690 V |
| Wire cross section max. (IECEX) | 6 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Ex 2014/34/EU label | II 2 G D |
| Rated voltage | 800 V |
| Current at maximum wires | 57 A |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Pollution severity | 3 |
| ATEX certificate | IECEXKEM06.0014U |
|---|---|
| Certificate No. (IECEX) | IECEXKEM06.0014U |
| Max. voltage (ATEX) | 690 V |
| Wire cross section max. (ATEX) | 6 mm² |
| Current (IECEX) | 36 A |
| Voltage, cross-connection | CrossConnectionGuide.pdf |
| Marking EN 60079-7 | Ex e II |
| Rated cross-section | 6 mm² |
| Rated current | 41 A |
| Standards | IEC 60947-7-1 |
| Rated impulse withstand voltage | 8 kV |
Rating Data Iecex/Atex
| Certificate No. (ATEX) | KEMA97ATEX1798U |
|---|---|
| ATEX certificate | KEMA97ATEX1798U_e.pdf |
| IEC Ex certificate | IECEXKEM06.0014U_e.pdf |
| Current (ATEX) | 36 A |
| Max. voltage (IECEX) | 690 V |
| Wire cross section max. (IECEX) | 6 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Ex 2014/34/EU label | II 2 G D |
| ATEX certificate | IECEXKEM06.0014U |
|---|---|
| Certificate No. (IECEX) | IECEXKEM06.0014U |
| Max. voltage (ATEX) | 690 V |
| Wire cross section max. (ATEX) | 6 mm² |
| Current (IECEX) | 36 A |
| Voltage, cross-connection | CrossConnectionGuide.pdf |
| Marking EN 60079-7 | Ex e II |
Conductors For Clamping (Rated Connection)
| Blade size | 4.0 x 0.8 mm |
|---|---|
| Clamping range, rated connection, min. | 0.33 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A5 |
| Stripping length | 12 mm |
| Tightening torque, min. | 0.8 Nm |
| Twin wire-end ferrules, max. | 4 mm² |
| Type of connection | Screw connection |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max. | 6 mm² |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, solid core, min. rated connection | 0.5 mm² |
| Wire connection cross section, stranded, rated connection, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Clamping range, rated connection, max. | 10 mm² |
|---|---|
| Clamping screw | M 3.5 |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min. | 0.5 mm² |
| Number of connections | 2 |
| Tightening torque, max. | 1.6 Nm |
| Torque level with DMS electric screwdriver | 3 |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min. | 0.5 mm² |
| Wire connection cross section, solid core max. rated connection | 10 mm² |
| Wire connection cross section, stranded, rated connection, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max. | 6 mm² |
Ul Rating Data
| Certificate No. (UR) | E60693 |
|---|---|
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Voltage size C (UR) | 600 V |
| Conductor size Factory wiring max. (UR) | 8 AWG |
|---|---|
| Conductor size Field wiring max. (UR) | 8 AWG |
| Current size C (UR) | 35 A |
