Weidmuller 0225820000 SAKS 1/35 G20 LD 24VDC
- MPN: 0225820000
- PPN: WDM-0225820000
CAD
$116.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

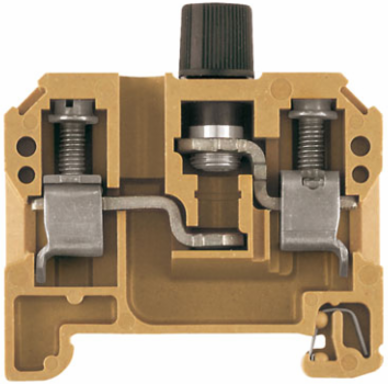

SAK Series, Fuse terminal, Rated cross-section: 10 mm², Screw connection, medium yellow, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|
Display Element
| Current | 50 A |
|---|---|
| Type of voltage for indicator | AC/DC |
| Operating voltage for display, max. | 24 V |
|---|
Dimensions And Weights
| Width | 13 mm |
|---|---|
| Height | 54 mm |
| Depth | 53 mm |
| Net weight | 36.41 g |
| Width (inches) | 0.512 inch |
|---|---|
| Height (inches) | 2.126 inch |
| Depth (inches) | 2.087 inch |
Fuse Terminals
| Cartridge fuse | G-Si. 5 x 20 |
|---|---|
| Display | LED |
| Operating voltage, max. | 24 V |
| Current | 50 A |
|---|---|
| Fuse holder (cartridge holder) | for screw fixing |
| Type of voltage for indicator | AC/DC |
Additional Technical Data
| Installation advice | Direct mounting |
|---|---|
| Open sides | right |
| Number of similar terminals | 1 |
|---|---|
| Type of mounting | Snap-on |
Material Data
| Material | KrG |
|---|---|
| UL 94 flammability rating | V-0, 5VA |
| Colour | medium yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000899 |
|---|---|
| eClass 9.0 | 27-14-11-16 |
| eClass 10.0 | 27-14-11-16 |
| ETIM 7.0 | EC000899 |
|---|---|
| eClass 9.1 | 27-14-11-16 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Screw connection, Fuse cartridge, with LED, One end without connector |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
| End cover plate required | Yes |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 10 mm² |
|---|---|
| Current at maximum wires | 6.3 A |
| Power loss in accordance with IEC 60947-7-x | 1.82 W |
| Rated voltage | 500 V |
|---|---|
| Volume resistance according to IEC 60947-7-x | 0.56 mΩ |
| Rated impulse withstand voltage | 4 kV |
Conductors For Clamping (Rated Connection)
| Blade size | 1.0 x 5.5 mm |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Connection cross-section, stranded, max. | 10 mm² |
| Connection direction | on side |
| Number of connections | 2 |
| Tightening torque, max. | 2.4 Nm |
| Torque level with DMS electric screwdriver | 4 |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Clamping range, max. | 16 mm² |
|---|---|
| Clamping screw | M 4 |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Gauge to IEC 60947-1 | B6 |
| Stripping length | 12 mm |
| Tightening torque, min. | 1.2 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
