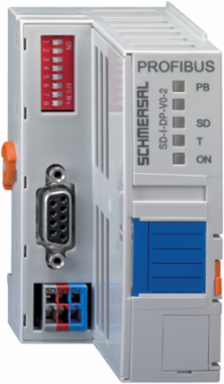

Schmersal 101192805 PROFIBUS Gateway, IP10 Protection, 72 mm Height, 50 mm Width, 120 g Weight
- MPN: 101192805
- PPN: SCM-101192805
CAD
$933.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PROFIBUS Gateway, IP10 Protection, 72 mm Height, 50 mm Width, 120 g Weight
Features
- PROFIBUS Gateway SD-I-DP-V0-2 to convert serial diagnostic signals to the PROFIBUS DP protocol
- The PROFIBUS Gateway SD-I-DP-V0-2 is a PROFIBUS slave
- Protection class IP 10 device for control cabinet mounting, for standard DIN rails
Documentation & Downloads
Specifications
Key Specifications
| Width | 50 mm |
|---|---|
| Depth | 97 mm |
| Height | 72 mm |
|---|
Electrical data
| Operating voltage | 24 VDC -15 % / +20 % (stabilised PELV power supply) |
|---|---|
| Operating current | 250 mA |
| Rated operating voltage | 24 VDC |
|---|
Note
| Note (General) | Detailed functions, see programming and configuration manual of the SD Gateway |
|---|

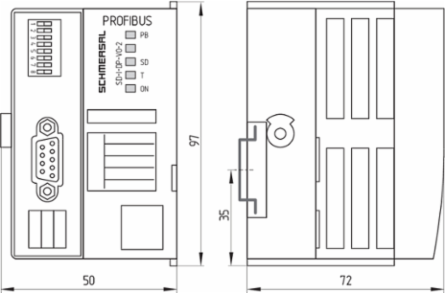

Mechanical data - Dimensions
| Width | 50 mm |
|---|---|
| Depth | 97 mm |
| Height | 72 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 V |
|---|---|
| Overvoltage category | II |
| Rated impulse withstand voltage U | 0.5 kV |
|---|---|
| Degree of pollution | 2 |
General data - Features
| Integral system diagnostics, status | Yes |
|---|
| Number of LEDs | 4 |
|---|
General data
| Gross weight | 120 g |
|---|
Wiring example
| Note (Wiring diagram) | Serial diagnostics of series-wired safety sensors/solenoid interlocks | Devices with serial diagnostic option: AZ 200, AZM 200, CSS 30S, CSS 34, MZM 100 |
|---|
Other data
| Note (applications) | Safety sensor | Guard system |
|---|
Ambient conditions
| Degree of protection of the enclosure | IP10 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 5 ... 9 Hz, Amplitude 3.5 mm | 9 ... 150 Hz, with 1 g |
| Ambient temperature | -5 ... +55 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Restistance to shock | 15 g / 11 ms |
Mechanical data - Connection technique
| Termination | Cage clamps |
|---|
Mechanical data
| Mounting | Snaps onto standard DIN rail to EN 60715 |
|---|
Status indication
| Note (LED switching conditions display) | ON permanent light green: supply voltage present | PB Flashing signal: PROFIBUS initialisation | PB Permanent light red: PROFIBUS error | SD Flashing signal: = SD gateway initialisation | SD Permanent light Red: = SD Gateway fault |
|---|
