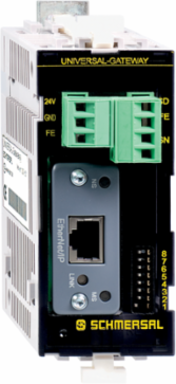

Schmersal 101218029 SD-I-U-MT Universal Gateway with Diagnostic Series-Wiring, 80 mm Depth, 200 g Weight
- MPN: 101218029
- PPN: SCM-101218029
CAD
$1858.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SD-I-U-MT Universal Gateway with Diagnostic Series-Wiring, 80 mm Depth, 200 g Weight
Features
- UNIVERSAL Gateway for the series-wiring of the diagnostic signals of safety
- switchgear with integrated SD interface.
- Comprehensive volumes of status and diagnostic data of the SD devices are transmitted to the control system through the field bus interface.
- Series-wiring of the diagnostic lines of max. 31 safety switchgear
- Series-wiring of different devices possible
- Reduced wiring efforts and costs as a result of the series-wiring of the safety channels and the diagnostic cables in the field.
- Automatic addressing of the safety switchgear in the SD interface
Documentation & Downloads
Specifications
Key Specifications
- Width
- 50 mm
- Depth
- 80 mm
Height100 mm
Electrical data
- Operating voltage
- 24 VDC -15 % / +20 % (stabilised PELV power supply)
- Operating current
- 500 mA
Rated operating voltage24 VDC
Mechanical data - Dimensions
- Width
- 50 mm
- Depth
- 80 mm
Height100 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 V
- Overvoltage category
- II
Rated impulse withstand voltage U0.5 kV
Degree of pollution2
General data - Features
- Integral system diagnostics, status
- Yes
Number of LEDs1
General data
- Gross weight
- 200 g
Other data
- Note (applications)
- Safety sensor | Guard system
Ambient conditions
- Degree of protection of the enclosure
- IP20
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 30 %
- Note (Relative humidity)
- non-condensing
- Restistance to shock
- 10 g
Ambient temperature+0 ... +55 °C
Storage and transport temperature, maximum+75 °C
Relative humidity, maximum85 %
Resistance to vibrations10 ... 57 Hz, Amplitude 0.35 mm | 57 ... 150 Hz, with 5 g
Mechanical data - Connection technique
- Termination
- Cage clamps
Electrical data - Communication protocols
- Feldbus Protokoll
- Modbus TCP
Mechanical data
- Mounting
- Snaps onto standard DIN rail to EN 60715
Electrical data - Electromagnetic compatibility (EMC)
- Electromagnetic compatibility
- EN 61000-4-2 | EN 61000-4-4 | EN 61000-4-5
- EMC rating
- EN 61000-4-3 | EN 61000-4-6
Interfering radiationIEC 61000-6-4 (2002)
