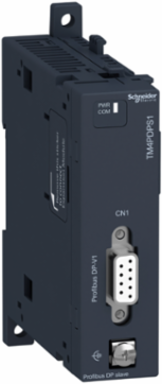

Schneider Electric TM4PDPS1 Profibus DP Communication Module, Height 90 mm, Weight 0.1 kg
- MPN: TM4PDPS1
- PPN: SCH-TM4PDPS1
CAD
$441.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This communication module is proposed as an option Modicon M241/251 controllers. This module provides slave Profibus DP. It is equipped with a 9-way SUB-D connector.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia |
|---|
| Depth | 90 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | Profibus DP V0, Profibus DP V1 |
|---|
Complementary Attributes
| Integrated Connection Type | Profibus DP female SUB-D 9 |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Electrical Connection | screw connector terminal for connecting the functional ground, SUB-D 9 1 female connector for connecting Profibus |
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Resistance To Electrostatic Discharge | 8 kV in air IEC 61000-4-24 kV on contact IEC 61000-4-2, 8 kV in air Marine specification (LR, ABS, DNV, GL), 6 kV on contact Marine specification (LR, ABS, DNV, GL) |
| Vibration Resistance | 1 mm 5-13.2 Hz symmetrical rail3 gn 8.7-150 Hz symmetrical rail, 1 mm 5-13.2 Hz panel mounting0.7 gn 13.2-100 Hz panel mounting |
| Carbon Footprint Of The Distribution Phase [A4] | 0.008057151095235932, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.003287669447066496, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 71 kg CO2 eq., 71.09680428130876 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Insulation | between bus and internal logic 1000 V DC |
| Marking | CE |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2...2.7 GHz IEC 61000-4-3 |
| Shock Resistance | 15 gn 11 ms |
| Sustainable Packaging | Yes |
| Transmission Rate | 1.5 Mbit/s 200-200 m500 kbit/s 400-400 m187.5 kbit/s 1000-1000 m9.6...93.75 kbit/s 1200-1200 m3...12 Mbit/s 100-100 m |
| Pep Code | ENVPEP1403009EN |
| Pep Verification Date | 2024-09-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; China, CN |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; China, CN |
| Width Nominal | 25 mm |
| Package Weight(Lbs) | 190.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Electromagnetic Emission | conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011radiated emissions 60...54 dBμV/m QP30-100 MHz Marine specification (LR, ABS, DNV, GL)radiated emissions 24 dBμV/m QP156-165 MHz Marine specification (LR, ABS, DNV, GL)conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011, radiated emissions 80...50 dμV/m QP150-30000 kHz Marine specification (LR, ABS, DNV, GL)radiated emissions 54 dBμV/m QP100-2000 MHz Marine specification (LR, ABS, DNV, GL) |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output)1.5 kV IEC 61000-4-4 I/O)1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link) |
| Certificate Agency | C-tick, cULus |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.3329293442925289 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 25 kg CO2 eq., 24.52987101482221 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1845 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Current Consumption | 290 mA 5 V DC communication bus |
| Local Signalling | 1 LED (green/yellow) for power supply1 LED (green/red) for communication |
| Power Dissipation In W | 1.5 W |
| Product Or Component Type | Profibus DP communication module |
| Returnability | No |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 96 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To enhance the capabilities of logic controllers by offering an Ethernet connection with 4 ports (TM4ES4) or configuring a slave connection on the Profibus DP bus (TM4PDPS1) 78,60% of the time for 10 years with these parmeter |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Indonesia, ID |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; China, CN |
| Height Nominal | 90 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517620090 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C horizontal installation, -10-55 °C horizontal installation, -10-50 °C vertical installation, -10-50 °C vertical installation-10-55 °C horizontal installation, -10-55 °C horizontal installation, -10-50 °C vertical installation |
|---|---|
| Product Compatibility | Modicon M241 logic controller, Modicon M251 logic controller |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 95.9709494609658 |
| Environmental Disclosure | ENVPEP1403009EN |
| Ip Degree Of Protection | IP20 with protective cover in place |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1403009EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Relative Humidity | 10-95 %, without condensation in operation), 10-95 %, without condensation in storage) |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1403009EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Storage Altitude | 0-3000 m |
| Pep Verification Date | 2024-09-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
General Attributes
| Product Or Component Type | Profibus DP communication module |
|---|
ETIM
| ETIM 8 | EC001604 |
|---|
| ETIM 9 | EC001604 |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 1 kV power lines (AC) differential mode IEC 61000-4-51 kV relay output differential mode IEC 61000-4-50.5 kV I/O differential mode IEC 61000-4-51 kV power lines (DC) common mode IEC 61000-4-52 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-5, 1 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-50.5 kV power lines (DC) differential mode IEC 61000-4-5 |
|---|
