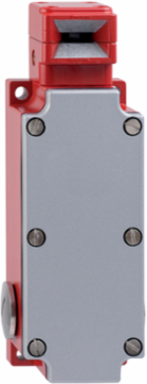

Schmersal 101016704 Safety Switch with Separate Actuator, 50 mm x 152 mm x 43 mm, IP67
- MPN: 101016704
- PPN: SCM-101016704
CAD
$297.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Safety Switch with Separate Actuator, 50 mm x 152 mm x 43 mm, IP67
Features
- Head positioned to the front
- Metal enclosure
- 50 mm x 152 mm x 43 mm
- Long life
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 8 A
- Utilisation category DC-13
- 5 A
- Switching principle
- Slow action
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC

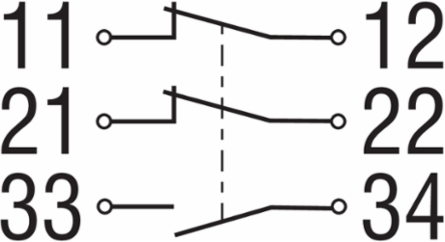

Switching elementNO contact, NC contact
Material of the contacts, electricalSilver

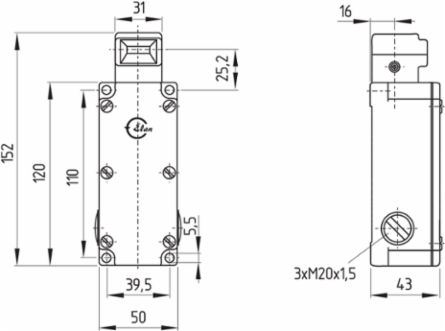

Mechanical data - Dimensions
- Length of sensor
- 43 mm
- Height of sensor
- 152 mm
Width of sensor50 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 400 V
Rated impulse withstand voltage U2.5 kV
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
B1,000,000 Operations
General data - Features
- Number of auxiliary contacts
- 1
Number of safety contacts2
General data
- Standards
- BG-GS-ET-15 | EN ISO 14119 | EN IEC 60947-5-1
- Enclosure coating material
- painted
Enclosure materialAluminium
Gross weight426 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
Ambient temperature-25 ... +70 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break force, minimum
- 5 N
Positive break travel11 mm
Note (Positive break force)per NC
Approvals - Standards
- Certificates
- cULus
