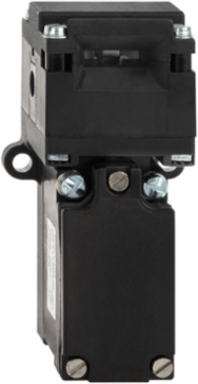

Schmersal 101017337 TZG Safety Switch with Separate Actuator 50 mm x 39.5 mm, IP67
- MPN: 101017337
- PPN: SCM-101017337
CAD
$82.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TZG Safety Switch with Separate Actuator 50 mm x 39.5 mm, IP67
Features
- Thermoplastic enclosure
- Long life

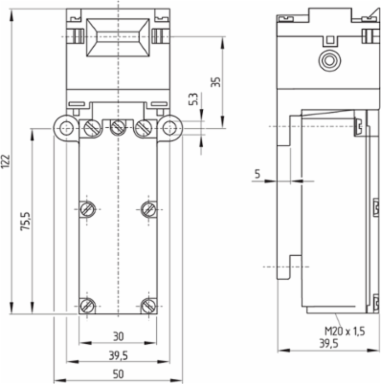

- 50 mm x 96,5mm / 122 mm x 39,5 mm
Documentation & Downloads
Specifications
Key Specifications
| Length | 39.5 mm |
|---|
| Width | 50 mm |
|---|
Electrical data
| Thermal test current | 10 A |
|---|---|
| Utilisation category AC-15 | 8 A |
| Utilisation category DC-13 | 5 A |
| Switching principle | Slow action |
| Utilisation category AC-15 | 230 VAC |
|---|---|
| Utilisation category DC-13 | 24 VDC |

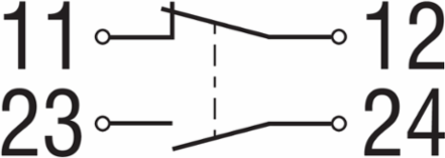

| Switching element | NC contact, NO contact |
| Material of the contacts, electrical | Silver |

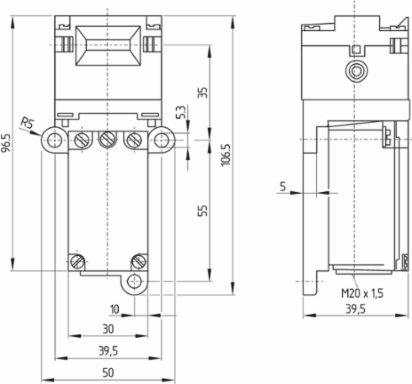

Mechanical data - Dimensions
| Width | 50 mm |
|---|---|
| Width of sensor | 50 mm |
| Height, minimum | 106,5 mm |
|---|---|
| Height of sensor | 39.5 mm |
Ambient conditions - Insulation values
| Rated insulation voltage U | 400 V |
|---|
| Rated impulse withstand voltage U | 2.5 kV |
|---|
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
Safety classification - Safety outputs
| B | 2,000,000 Operations |
|---|
| B | 1,000,000 Operations |
|---|
General data - Features
| Number of auxiliary contacts | 1 |
|---|
| Number of safety contacts | 1 |
|---|
General data
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Gross weight | 172 g |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
|---|
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 60947-5-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|
| Ambient temperature | -25 ... +70 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals |
|---|---|
| Cable section, maximum | 1.5 mm² |
| Cable section, minimum | 0.5 mm² |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|
| Actuating speed, maximum | 0.2 m/s |
|---|
Approvals - Standards
| Certificates | CCC |
|---|
