SelecTone Amplified Speaker, UL and cUL, 120VAC, Surface Mount
Federal Signal

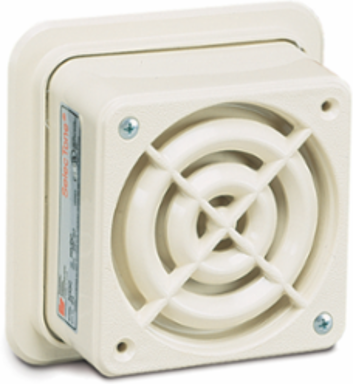

Federal Signal 50GC-120BG SelecTone Amplified Speaker, UL and cUL, 120VAC, Surface Mount

  • MPN: 50GC-120BG
  • UPC: 782979291855
  • PPN: FDS-50GC-120BG
  • UNSPSC: 46171602

CAD

$566.80

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Model 50GC SelecTone® Amplified Speaker is designed to produce crisp, clear tones, digital voice messages and live public address.In Model 50GC a short, folded re-entrant horn is interposed between the diaphragm and surrounding air space. This design provides optimal dBa output and frequency response. When installed with the WB Weatherproof Back Box, model 50GC is suitable for use outdoors.SelecTone Amplified Speakers are used individually or as part of a plant-wide emergency notification system. Model UTM Universal Tone Module with 32 tones, or model TM33-SD Custom Tone Module is plugged into a single SelecTone Amplified Speaker for stand-alone use or into a SelecTone Command Unit for plant-wide signaling.For plant-wide signaling, a Connector Kit is installed into each SelecTone Amplified Speaker and wired to a central controller. SelecTone Command Units and CommCenter® Digital Message Centers broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone Amplified Speakers.The compact size and attractive appearance of Model 50GC makes it ideal for use in offices, hallways, reception, and plant areas where ambient noise levels are not exceedingly high, and even sound dispersal is desired. Emergency signaling and paging are common applications.

Features

  • Available in 24VAC/DC and 120VAC
  • Solid-state circuitry
  • Built-in gain control, adjustable between 64 dBa to 88 dBa @ 10' (74 dBa to 98 dBa @ 1m)
  • Flush or surface mount
  • Type 3R enclosure when used with the WB back box
  • CSFM Approved
  • UL and cUL Listed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Body Color
Beige
dBa 1 Meter
98
Availability
In Stock - Ships in 2 Bus Days
Operating Current Amps
0.04 @ 120VAC
Standby Current
0.027
Depth
5.5 in, 13.97 cm
Width
5.5 in, 13.97 cm
Weight1.7 lbs
Certification ListingCSFM, UL, cUL
dBa 10 Ft88
Mount TypeSurface
Operating Temp.-31˚ to +150˚F (-35˚ to +66˚C)
Audible Signals Voltage120VAC
Height5.5 in, 13.97 cm
