Federal Signal

Federal Signal 302X-024 SelecTone 30W Amplified Speaker, Explosion-Proof, UL and cUL CID1, 24VAC/DC, Gray

SelecTone 30W Amplified Speaker, Explosion-Proof, UL and cUL CID1, 24VAC/DC, Gray
  • MPN: 302X-024
  • UPC: 782979201007
  • PPN: FDS-302X-024
  • UNSPSC: 46171602

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

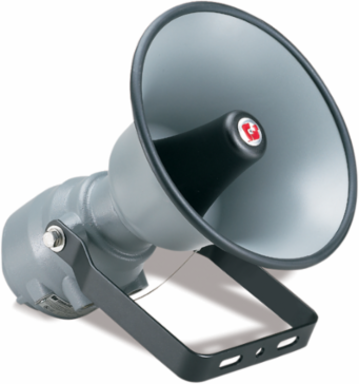

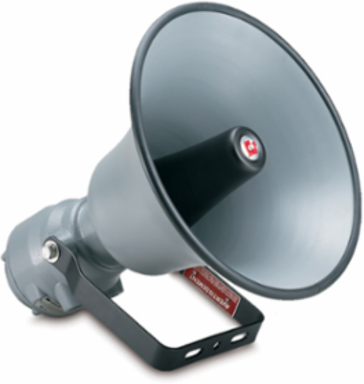

Model 302X SelecTone® Amplified Speaker is designed to meet UL 1480 intelligibility requirements producing crisp, clear tones, digital voice messages and live public address in harsh environments with high ambient noise levels.The rugged speaker cone and projector are constructed of spun aluminum. The all new internal circuitry, tone module, and gain control are contained in a housing constructed of cast aluminum. All surfaces are sealed with powder-coat paint and assembled with stainless steel hardware. Dust- and moisture-proof gaskets provide protection from the elements. This housing incorporates a tool-less rear cover design, eliminating the need for torque specific hardware and solves the problem of missing or lost fasteners.SelecTone Amplified Speakers are used individually or as part of a plant-wide emergency notification system. Model UTM Universal Tone Module with 32 tones, or model TM33-SD Custom Tone Module is plugged into a single SelecTone Amplified Speaker for stand-alone use or into a SelecTone Command Unit for plant-wide signaling.For plant-wide signaling, a Connector Kit is required for each SelecTone Amplified Speaker and wired to a central controller. SelecTone Command Units and CommCenter® Digital Message Centers broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone Amplified Speakers.Applications for SelecTone include emergency warning, plant evacuation, start and dismissal, public address, and process control.

Features

  • Available in 24VAC/DC and 120/240VAC
  • Digital Signal Amplification
  • Fused input and output
  • Built-in gain control, adjustable between 0 dBa to 114 dBa @ 10' (0 dBa to 124 dBa @ 1m)
  • Type 4X, IP65 enclosure
  • CSFM Approved
  • UL and cUL Listed for Class I, Division 1, Groups B, C, and D; Class I, Division 2, Group A; Class II, Division 2, Groups F and G; Class III

Specifications

Specifications

Country of Origin
United States
Body Color
Gray
dBa 1 Meter
124
Availability
In Stock - Ships in 2 Bus Days
Operating Current Amps
1.35(VDC)/1.91(VAC)
Standby Current
0.13(VDC)/0.31(VAC)
Depth
18.8 in, 47.752 cm
Width
16.7 in, 42.418 cm
Weight16.4 lbs
Certification ListingCSFM, UL, cUL
dBa 10 Ft114
Mount TypeSurface
Operating Temp.-67˚ to +150˚F (-55˚ to +66˚C)
Audible Signals Voltage24VAC/DC
Height18.8 in, 47.752 cm
