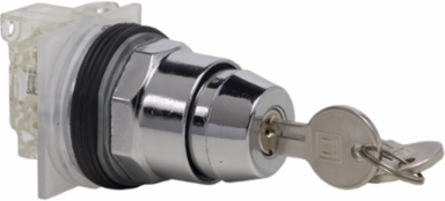

Schneider Electric 9001KS53K5H1 Harmony 9001K 30mm Key Switch Selector, 3 Positions, Metal Bezel

  • MPN: 9001KS53K5H1
  • UPC: 785901721611
  • PPN: SCH-9001KS53K5H1
  • UNSPSC: 39122216

CAD

$321.71

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Harmony 9001K 30mm Key Switch Selector by Schneider Electric is designed to enhance control and security in automation settings. Featuring a robust metal bezel, this selector switch operates in three distinct positions, allowing for versatile and reliable operation in various industrial applications. Its durable construction and intuitive design make it an ideal choice for environments where precision and safety are paramount, ensuring seamless integration into your control systems while standing up to the demands of industrial use.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginMexico

Physical Attributes

Size30 mm

Important Information Attributes

Certificate AgencyCSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR, CE
Local Publishable Date2026-08-10
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bezel Materialmetal
Contacts Type And Composition1 C/O
Key NumberE10
Mechanical Durability0.5 Mcycles
Operator Position Information3 positions
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony 9001K
ReturnabilityNo
Type Of Operatorspring return
Nbr. Of Units In Pkg.1
Warranty In Months18
Local Data StatusPublishable
Return IndicatorN
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Product Kit IdentifierN
Cam Profile3
Device Short NameK
Key Withdrawal Positioncenter
Mounting Diameter30 mm
Operator Profilekey switchblack key operated knob
Product Or Component Typeselector switch
Returnboth sides to centre
Sustainable PackagingYes
Connections Terminalsscrew-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Customs Code8536509025

Environment Attributes Main

Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R/6/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP65/IP66
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

General Attributes

Product Or Component Typeselector switch
Range Of ProductHarmony 9001K

ETIM

ETIM 8EC001029
ETIM 10EC001029
ETIM 9EC001029

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months

Overview Attributes

Device Presentationcomplete product
Harmony 9001K 30mm Key Switch Selector, 3 Positions, Metal Bezel
