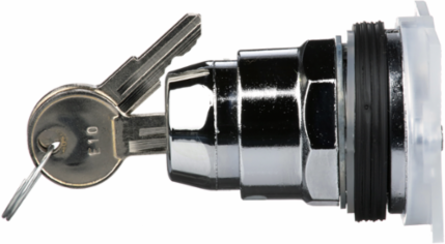

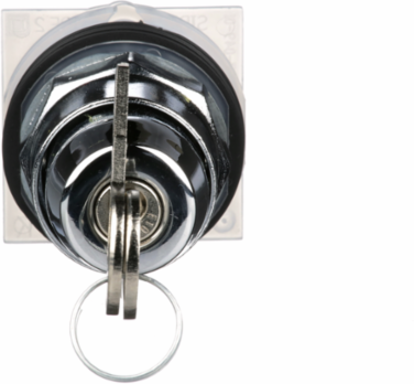

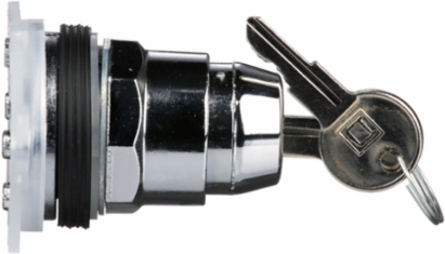

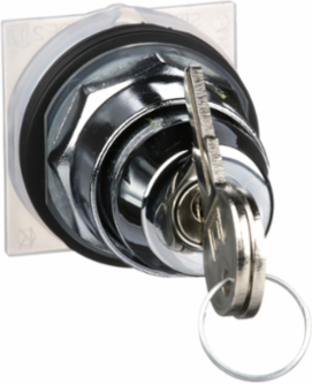

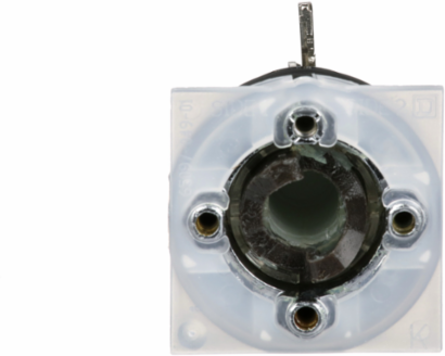

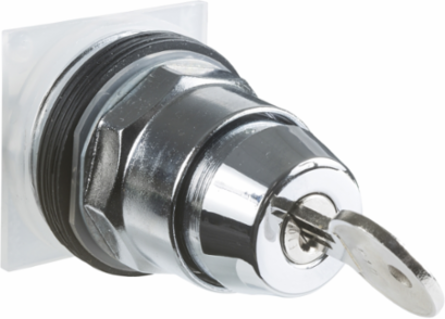

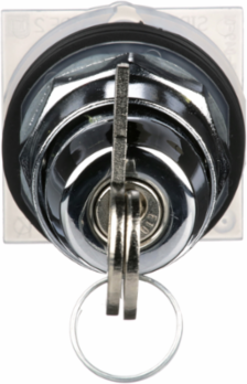

Schneider Electric 9001KS53K5 Harmony Key Selector Switch Head, Metal, 30mm, Key E10, 3 Positions, IP66

MPN: 9001KS53K5
UPC: 785901913924
PPN: SCH-9001KS53K5
UNSPSC: 39122217

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$216.29

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony Key Selector Switch Head, Metal, 30mm, Key E10, 3 Positions, IP66

Features

Improved security thanks to finger-safe contact blocks and light modules
Robustness to withstand the harshest environments
Easy, secure mounting system
Automatic self-grounding operators without additional wiring
A large metal set of accessories to customize your product
Single screw Contact Block Fastening

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Size	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL 508, NEMA
Local Publishable Date	2026-03-25
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bezel Material	metal
Compatibility Code	9001KS
Device Short Name	9001K
Key Withdrawal Position	center
Mounting Diameter	30 mm
Operator Profile	key switch
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Return	both sides to centre
Shape Of Signaling Unit Head	octagonal
Sustainable Packaging	Yes
Type Of Operator	spring returnto centre spring return
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Customs Code	8538908180

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Cam Profile	3
Contacts Type And Composition	without contact block
Key Number	E10
Mechanical Durability	0.5 Mcycles
Operator Position Information	3 positions
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	head for key selector switch
Range Of Product	Harmony 9001K
Returnability	No
Shock Resistance	50 gn IEC 60068-2-27
Type Of Keylock	E10
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Ip Degree Of Protection	IP66 IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	9001KA1 side 1 or 2
Pep Code	ENVPEP2503027EN
