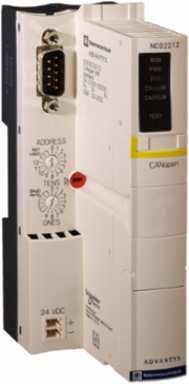

Schneider Electric STBNCO2212 Modicon STB Network Interface Module, 24V DC, 1 Mbit/s, IP20
Schneider Electric STBNCO2212 Modicon STB Network Interface Module, 24V DC, 1 Mbit/s, IP20
- MPN: STBNCO2212
- PPN: SCH-STBNCO2212
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$674.78/ EA
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments and 127 slaves. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and output current of 1.2A. Communication services are service data object (SDO), network management (NMT) etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.135kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Specifications
Environment
- Product Certifications
- ATEX Cat 3G || FM Class 1 Division 2 || CSA || UL || C-Tick
- Electromagnetic Compatibility
- immunity to electromagnetic interference IEC 61131-2
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
- Pollution Degree
- 2 IEC 60664-1
- Relative Humidity
- 95-95 % 60-60 °C without condensation
Ambient Air Temperature For Operation0-60 °C without derating) || -25-70 °C with derating factor)
Shock Resistance30 gn 11 ms IEC 88 reference 2-27
Ip Degree Of ProtectionIP20 IEC 61131-2 class 1
Ambient Air Temperature For Storage-40-85 °C
Operating Altitude<= 2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP080803EN
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Complementary
- Height
- 40 mm
- Status Led
- 1 LED (green) CAN RUN || 1 LED (green) island state (RUN) || 1 LED (green) power supply (PWR) || 1 LED (red) CAN ERR || 1 LED (red) module error (ERR) || 1 LED (yellow) test mode
- Communication Service
- Service Data Object (SDO) || Network management (NMT) || Process Data Object (PDO)
- Power Supply Type
- SELV
- Net Weight
- 0.135 kg
- Maximum Supply Current
- 700 A
- Overvoltage Category
- II
- [Us] Rated Supply Voltage
- 24 V DC
Number Of Addressable I/O Module0-32 per island
Output Voltage5.25 V DC +/- 0.21 %)logic bus
MarkingCE
Input Current430 mA supply circuit
Supply Voltage Limits19.2-30 V
Width128.3 mm
Depth70 mm
Nominal Output Current0.575 A 60-70 °C || 1.2 A
Specifications
- Range Of Product
- Modicon STB distributed I/O solution
- Transmission Rate
- 1 Mbit/s 30-30 m || 10 kbit/s 5000-5000 m
- Structure Type
- CAN field bus
- Integrated Connection Type
- CANopen bus CIA DS-301 9-way male SUB-D connector double shielded twisted pair bus) || CANopen bus CIA DS-301 HE-13 RS232 port) || CANopen bus CIA DS-301 8-way female RS232 port)
Number Of Segments1 primary, maximum 6 extensions
Product Or Component Typestandard Network Interface Module
Number Of Slave127
