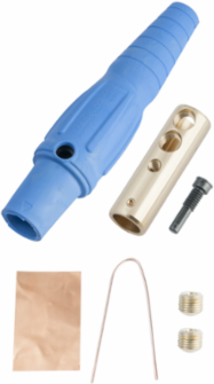

Pass & Seymour PS20FBBL Series 16 In-Line Connectors, 400A 600V, Cable Size #2 - 2/0, Female Cam-Type Plug
- MPN: PS20FBBL
- UPC: 785007308136
- PPN: P-S-PS20FBBL
CAD
$74.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Series 16 In-Line Connectors, 400A 600V, Cable Size #2 - 2/0, Female Cam-Type Plug
Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance
- Exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy-duty hex set screws allow greater termination torque
- Copper wire provides quality strain relief
- Copper shim bundles wire strands to reduce ''splaying.''
Documentation & Downloads
Specifications
Key Specifications
- Length
- 6.8 in
- Color
- Blue
- Environmental Conditions
- Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
- Standard
- UL
- Standard
- cCSAus
- Amperage
- 400.0 A
- Indoor/Outdoor
- Indoor
- Features
- Chemical Resistant
- Application Sector
- Commercial
- NEMA Rating
- NEMA 3R and 4 for indoor applications
Country of OriginMexico
Product LinePass & Seymour
FlangedNo
TypeConnector
Voltage600.0 V
Warranty Type1-Year
Terminal Accommodation2/0
Number of PolesSingle Pole
Application SectorIndustrial
Special FeaturesThermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity. Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity. Heavy-duty hex set screws allow greater termination torque. Copper wire provides quality strain relief. Copper shim bundles wire strands to reduce "splaying."
