Lexium 28 Servo Motor, 80mm, 750W, 2.8kg, IP65, 5000RPM
Schneider Electric

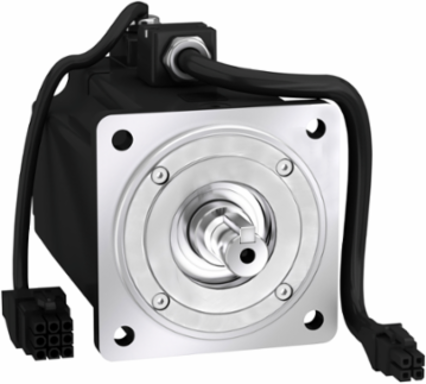

Schneider Electric BCH2LF0733CA5C Lexium 28 Servo Motor, 80mm, 750W, 2.8kg, IP65, 5000RPM

  • MPN: BCH2LF0733CA5C
  • PPN: SCH-BCH2LF0733CA5C

CAD

$980.40

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Lexium 28 Servo Motor, 80mm, 750W, 2.8kg, IP65, 5000RPM

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Switzerland, China, France, Sweden, United States

Physical Attributes

Key Width
6 mm
Shaft Length
35 mm
Motor Flange Size80 mm

Complementary Attributes

Maximum Current Irms
13.23 A LXM28... 0.75 kW, 220 V, 13.23 A LXM28... 0.75 kW, 110 V, 13.5 A
Maximum Ambient Air Temperature For Operation
40.0 °C
Maximum Mechanical Speed
5000 rpm
Maximum Permanent Current
4.29 A
Minimum Ambient Air Temperature For Operation
0.0 °C
Line Rated Current4.29 A
Maximum Axial Force Fa115 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr332 N 3000 rpm
Minimum Operational Altitude0.0 m

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Coefficient 1 1
-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5
-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Inertia
0.0 kg.cm² of brake, 1.53 kg.cm² of motor
Nominal Torque
2.39 N.m LXM28... 4.5 A, 220 V, three phase2.39 N.m half speed, 2.39 N.m full speed, 2.39 N.m LXM26D 4.5 A, 220 V, single phase, 2.39 N.m LXM26D 4.5 A, 220 V, three phase, 2.39 N.m LXM28... 4.5 A, 220 V, single phase, 2.39 N.m LXM28... 9 A, 110 V, single phase
Phase
single phase, three phase
[Us] Rated Supply Voltage
220 V, 110 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.4 kg CO2 eq., 0.3621611166
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
19 kg CO2 eq., 19.3262475336
Local Data Status
Publishable
Return Indicator
N
Stock Policy
1
Serviceability
Yes
Field Service Division
IDIBS
Weee Scope
Out
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1504002EN
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
2444
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
4
Function Option
Advanced
Market Segmentation
Industrial
Centring Collar Diameter
70 mm
Coefficient 1 2
5.62440546E-19 N.m/rpm²
Coefficient 1 6
3.2E-34 N.m/rpm6
Coefficient 2 1
8.75000000000026E-06 N.m/rpm
Continuous Stall Current
4.01 A
Derating Temperature Scale
40.0 °C
Device Short Name
BCH2
Feedback Type
20 bits single turn absolute encoder
Maximum Operational Altitude
1000.0 m
Minimum Operational Altitude
0.0 m
Motor Voltage Drop Coefficient
1
Mounting Support
asian standard flange
Number Of Motor Poles
4.0
Number Of Mounting Holes
4
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range Of Product
Lexium 28
Rotor Inertia
1.19 kg.cm²
Shaft End
keyed
Software Version
EIME v5.6.0.1
Stator Inductance
6.1 mH 20 °C
Sustainable Packaging
No
Temperature Magnet Hot
100 °C
Torque Constant
0.6 N.m/A 20 °C
Type Of Cooling
natural convection
Database Version
2016-11
Pcr Version
PCR-ed3-EN-2015 04 02
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Manufacturing [A1-a3]
Energy model used: China
Energy Model - Use [B6]
Electricity mix; AC; < 1kV; EU-27
Length Total
138 mm
Brake Pull-in Power
10.2 W
Maximum [In] Rated Current
4.29 A
Package Weight(Lbs)
3.263 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque2.39 N.m LXM28 4.5 A, 220 V, three phase2.39 N.m LXM26D 4.5 A, 220 V, single phase, 2.39 N.m LXM26D 4.5 A, 220 V, three phase, 2.39 N.m LXM28 4.5 A, 220 V, single phase, 2.39 N.m LXM28 9 A, 110 V, single phase
Nominal Speed3000 rpm LXM28... 4.5 A, 220 V, three phase, 3000 rpm LXM26D 4.5 A, 220 V, single phase, 3000 rpm LXM26D 4.5 A, 220 V, three phase, 3000 rpm LXM28... 4.5 A, 220 V, single phase, 3000 rpm LXM28... 9 A, 110 V, single phase, 3000 rpm
Peak Stall Torque7.16 N.m LXM28... 4.5 A, 220 V, three phase7.16 N.m LXM26D 4.5 A, 220 V, single phase, 7.16 N.m LXM26D 4.5 A, 220 V, three phase, 7.16 N.m LXM28... 4.5 A, 220 V, single phase, 7.16 N.m LXM28... 9 A, 110 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The Distribution Phase [A4]0.4350711659, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0214915857, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]3 318 kg CO2 eq., 3317.7034249803
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes90 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power750 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionfree lead
Holding Brakewithout
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter6.6 mm
Network Number Of Phases1
Number Of Motor Stacks2
Peak Nominal Torque7.16 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter19 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant4.07 ms 20 °C
Stator Resistance1.5 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint3 338 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh6771.559
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange4 mm
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

Ambient Air Temperature For Operation
-20-40 °C, -20-40 °C
Product Compatibility
LXM28... servo drive 0.75 kW, 220 V, three phaseLXM26D servo drive 0.75 kW, 220 V, single phase, LXM26D servo drive 0.75 kW, 220 V, three phase, LXM28... servo drive 0.75 kW, 220 V, single phase, LXM28... servo drive 0.75 kW, 110 V, single phase
Reach Free Shvc
Yes
China Rohs Regulation
X
Mercury Free
Yes
Circularity Profile
ENVEOLI1504002EN
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2020-11-01
Type Of Verification For The Pep
Independent internal review
Ip Degree Of ProtectionIP50 IM V3, IP65 IM B5, IM V1
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint3337.8483963821
Environmental DisclosureENVPEP1504002EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phase
single phase, three phase
Range Of Product
Lexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8
EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power
750 W LXM28... 4.5 A, 220 V, three phase750 W LXM26D 4.5 A, 220 V, single phase, 750 W LXM26D 4.5 A, 220 V, three phase, 750 W LXM28... 4.5 A, 220 V, single phase, 750 W LXM28... 9 A, 110 V, single phase
Output Current 3s Peak13.5 A
