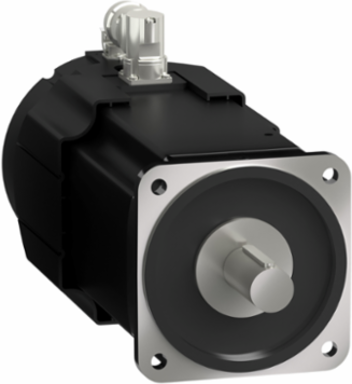

Schneider Electric BMH1904P32A2B Servo Motor Lexium 32, 100 Nm, 3000 RPM, Keyed Shaft, IP65
- MPN: BMH1904P32A2B
- PPN: SCH-BMH1904P32A2B
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric BMH1904P32A2B Servo Motor is engineered for high-performance applications within the automation and control sector. Offering a robust torque of 100 Nm and a maximum speed of 3000 RPM, this servo motor is designed to deliver precision and reliability in motion control environments. With its keyed shaft and IP65 rating, it ensures effective operation even in challenging conditions, making it an ideal choice for industrial automation tasks that require both durability and accuracy. This servo motor represents a reliable solution for enhancing efficiency in your automated systems.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 16000 W
- Peak Stall Torque
- 230 N.m
- Maximum Mechanical Speed
- 3000 rpm
- Continuous Stall Current
- 40 A
- Maximum Permanent Current
- 100 A
- Phase
- Three phase
- Back Emf Constant
- 168 V/krpm 120 B0C
- Maximum Axial Force
- 0.2 x Fr
- Stator Resistance
- 0.16 Ohm 20 B0C
- Stator Electrical Time Constant
- 29.6 ms 20 B0C
- Number of Motor Poles
- 10
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
- Shaft Diameter
- 38 mm (1.50 in)
- Key Width
- 10 mm (0.39 in)
- Length
- 449.5 mm (17.70 in)
- Centring Collar Depth
- 4 mm (0.16 in)
- Mounting Holes Diameter
- 14 mm (0.55 in)
- Shaft End
- Keyed
- Electrical Connection
- Rotatable right-angled connectors
- Product Type
- Servo motor
- Country of Origin
- Germany (DE)
Continuous Stall Torque100 N.m
Nominal Torque76.4 N.m
Nominal Speed2000 rpm
Maximum Current Irms100 A
Voltage480 V
Torque Constant2.5 N.m/A 120 B0C
Maximum Radial Force3800 N (1000 rpm), 3700 N (2000 rpm), 3600 N (3000 rpm)
Type of CoolingFan
Stator Inductance4.74 mH 20 B0C
Rotor Inertia276.7 kg.cmB2
Number of Motor Stacks4
Feedback TypeMultiturn SinCos Hiperface
Shaft Length80 mm (3.15 in)
Motor Flange Size190 mm (7.48 in)
Centring Collar Diameter180 mm (7.09 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes215 mm (8.46 in)
Mounting SupportInternational standard flange
Net Weight57.4 kg (126.55 lb)
ComplianceRoHS, Mercury free, PVC free, Green Premium product
