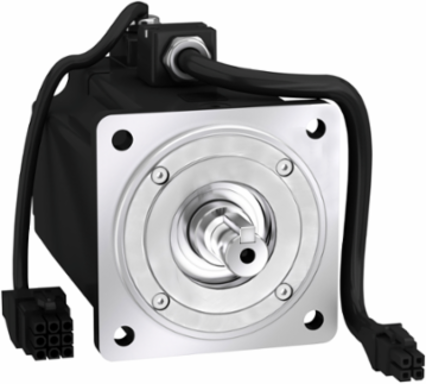

Schneider Electric BCH2LF0433CA5C Servo Motor 80mm, 400W, 5000RPM, 2kg, IP65
Schneider Electric BCH2LF0433CA5C Servo Motor 80mm, 400W, 5000RPM, 2kg, IP65
- MPN: BCH2LF0433CA5C
- PPN: SCH-BCH2LF0433CA5C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$856.69/ EA
Description
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 2.29A and a continuous power of 400W. The shaft dimensions are 14mm (Diameter) x 30mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 112mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole. It weighs 2kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1504002EN
Complementary
- Circle Diameter Of The Mounting Holes
- 90 mm
- Continuous Power
- 400 W
- Product Compatibility
- LXM26D servo drive 0.4 kW, 220 V, single phase || LXM26D servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 220 V, single phase || LXM28... servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 110 V, single phase
- Maximum Radial Force Fr
- 332 N 3000 rpm
- Mounting Support
- asian standard flange
- Rotor Inertia
- 0.67 kg.cm²
- Maximum Axial Force Fa
- 115 N
- Holding Brake
- without
- Brake Pull-In Power
- 10.2 W
- Maximum Current Irms
- 7.73 A LXM28... 0.4 kW, 220 V || 7.73 A LXM28... 0.4 kW, 110 V
- Net Weight
- 2 kg
- Stator Inductance
- 11.3 mH 20 °C
- [Us] Rated Supply Voltage
- 220 V || 110 V
- Peak Stall Torque
- 3.81 N.m LXM26D 2.6 A, 220 V, single phase || 3.81 N.m LXM26D 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 2.6 A, 220 V, single phase || 3.81 N.m LXM28... 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 5.7 A, 110 V, single phase
- Distance Shaft Shoulder-Flange
- 4 mm
- Key Width
- 5 mm
- Type Of Cooling
- natural convection
- Nominal Speed
- 3000 rpm LXM26D 2.6 A, 220 V, single phase || 3000 rpm LXM26D 2.6 A, 220 V, three phase || 3000 rpm LXM28... 2.6 A, 220 V, single phase || 3000 rpm LXM28... 2.6 A, 220 V, three phase || 3000 rpm LXM28... 5.7 A, 110 V, single phase
- Stator Resistance
- 3.2 Ohm 20 °C
- Nominal Torque
- 1.27 N.m LXM26D 2.6 A, 220 V, single phase || 1.27 N.m LXM26D 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
- Continuous Stall Torque
- 1.27 N.m LXM26D 2.6 A, 220 V, single phase || 1.27 N.m LXM26D 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Maximum Permanent Current2.52 A
Maximum Mechanical Speed5000 rpm
Stator Electrical Time Constant3.53 ms 20 °C
Electrical Connectionfree lead
Number Of Motor Stacks1
Back Emf Constant33.5 V/krpm 20 °C
Centring Collar Depth4 mm
Shaft Length30 mm
Network Number Of Phasessingle phase || three phase
Length112 mm
Centring Collar Diameter70 mm
Motor Flange Size80 mm
Nominal Output Power400 W LXM26D 2.6 A, 220 V, single phase || 400 W LXM26D 2.6 A, 220 V, three phase || 400 W LXM28... 2.6 A, 220 V, single phase || 400 W LXM28... 2.6 A, 220 V, three phase || 400 W LXM28... 5.7 A, 110 V, single phase
Number Of Mounting Holes4
Shaft Diameter14 mm
Mounting Holes Diameter6.6 mm
Shaft Endkeyed
Feedback Type20 bits single turn absolute encoder
Continuous Stall Current2.29 A
Torque Constant0.55 N.m/A 20 °C
Environment
- Ambient Air Temperature For Operation
- -20-40 °C
Ip Degree Of ProtectionIP50 IM V3 || IP65 IM B5, IM V1
Specifications
- Product Or Component Type
- servo motor
- Device Short Name
- BCH2
Range CompatibilityLexium 28
