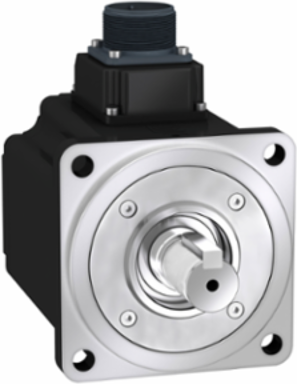

Schneider Electric BCH2LH1033CA6C Lexium 28 Servo Motor 1000W, 100mm Flange, 5000RPM
- MPN: BCH2LH1033CA6C
- PPN: SCH-BCH2LH1033CA6C
CAD
$1237.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 5.83A and a continuous power of 1000W. The shaft dimensions are 22mm (diameter) x 45mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP65 rated product. The length of this product is 153.5mm and the centering collar dimensions are 7mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 4.6kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 1kW 220V single phase and LXM26D servo drive motor. It supports 100mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Switzerland, China, France, Sweden |
|---|
Physical Attributes
| Key Width | 8 mm |
|---|---|
| Shaft Length | 45 mm |
| Motor Flange Size | 100 mm |
|---|
Complementary Attributes
| Maximum Current Irms | 18.9 A LXM28... 1 kW, 220 V, 20.0 A |
|---|---|
| Maximum Ambient Air Temperature For Operation | 40.0 °C |
| Maximum Mechanical Speed | 5000 rpm |
| Maximum Permanent Current | 6.64 A |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Line Rated Current | 6.64 A |
|---|---|
| Maximum Axial Force Fa | 200 N |
| Maximum Operational Altitude | 1000.0 m |
| Maximum Radial Force Fr | 570 N 3000 rpm |
| Minimum Operational Altitude | 0.0 m |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Coefficient 1 1 | -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm |
| Coefficient 1 5 | -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5 |
| Nominal Speed | LXM28... 7 A, 220 V, three phase LXM26D 7 A, 220 V, single phase, LXM26D 7 A, 220 V, three phase, LXM28... 7 A, 220 V, single phase, 3000 rpm |
| Peak Stall Torque | 9.54 N.m LXM28... 7 A, 220 V, three phase9.54 N.m LXM26D 7 A, 220 V, single phase, 9.54 N.m LXM26D 7 A, 220 V, three phase, 9.54 N.m LXM28... 7 A, 220 V, single phase |
| Saturation Coefficient | -3.8243890773E-18, -3.8243890773E-18 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.7 kg CO2 eq., 0.6948939574 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 37 kg CO2 eq., 37.0820941704 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1504002EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2444 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Centring Collar Diameter | 95 mm |
| Coefficient 1 2 | 5.62440546E-19 N.m/rpm² |
| Coefficient 1 6 | 3.2E-34 N.m/rpm6 |
| Coefficient 2 1 | 8.75000000000026E-06 N.m/rpm |
| Continuous Stall Current | 5.83 A |
| Derating Temperature Scale | 40.0 °C |
| Device Short Name | BCH2 |
| Feedback Type | 20 bits single turn absolute encoder |
| Inertia | 0.0 kg.cm² of brake2.39 kg.cm² of motor |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Motor Figures | 230.0 V |
| Mounting Holes Diameter | 9.2 mm |
| Network Number Of Phases | 1 |
| Number Of Motor Stacks | 1 |
| Peak Nominal Torque | 9.54 N.m |
| Product Or Component Type | servo motor |
| Returnability | No |
| Shaft Diameter | 22 mm |
| Sizing Reference | BCH2 |
| Stator Electrical Time Constant | 6.27 ms 20 °C |
| Stator Resistance | 0.67 Ohm 20 °C |
| Temperature Copper Hot | 135 °C |
| Temperature Magnet Rt | 20 °C |
| Total Lifecycle Carbon Footprint | 4 071 kg CO2 eq. |
| Pep Code | ENVPEP1504002EN |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years |
| Functional-unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 8230.436 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| [Us] Rated Supply Voltage | 220 V |
| Brake Pull-in Power | 10.4 W |
| Maximum [In] Rated Current | 6.64 A |
| Package Weight(Lbs) | 5.893 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Coefficient 1 3 | -2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3 |
| Continuous Stall Torque | 3.18 N.m LXM28 7 A, 220 V, three phase3.18 N.m LXM26D 7 A, 220 V, single phase, 3.18 N.m LXM26D 7 A, 220 V, three phase, 3.18 N.m LXM28 7 A, 220 V, single phase |
| Nominal Torque | 3.18 N.m LXM28... 7 A, 220 V, three phase, 3.18 N.m half speed, 3.18 N.m full speed, 3.18 N.m LXM26D 7 A, 220 V, single phase, 3.18 N.m LXM26D 7 A, 220 V, three phase, 3.18 N.m LXM28... 7 A, 220 V, single phase |
| Phase | single phase, three phase |
| Carbon Footprint Of The Distribution Phase [A4] | 0.834789574, 0.8 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0412368206, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 4 032 kg CO2 eq., 4032.4754914313 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 115 mm |
| Coefficient 1 4 | 7.11E-26 N.m/rpm4 |
| Coefficient 2 0 | 0 N.m |
| Continuous Power | 1000 W |
| Derating Altitude Start | 1000.0 m |
| Derating Temperature Start | 40.0 °C |
| Electrical Connection | connector MIL |
| Holding Brake | without |
| Maximum Operational Altitude | 1000.0 m |
| Minimum Operational Altitude | 0.0 m |
| Motor Voltage Drop Coefficient | 1 |
| Mounting Support | asian standard flange |
| Number Of Motor Poles | 5.0 |
| Number Of Mounting Holes | 4 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium 28 |
| Rotor Inertia | 2.4 kg.cm² |
| Shaft End | keyed |
| Software Version | EIME v5.6.0.1 |
| Stator Inductance | 4.2 mH 20 °C |
| Sustainable Packaging | No |
| Temperature Magnet Hot | 100 °C |
| Torque Constant | 0.55 N.m/A 20 °C |
| Type Of Cooling | natural convection |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Length Total | 153.5 mm |
| Accuracy Error [Angular] | 0.044 ° |
| Distance Shaft Shoulder-flange | 7 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8501524000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-40 °C, -20-40 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 4071.1285059537 |
| Environmental Disclosure | ENVPEP1504002EN |
| Ip Degree Of Protection | IP50 IM V3IP65 IM B5, IM V1 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Product Compatibility | LXM28... servo drive 1 kW, 220 V, three phaseLXM26D servo drive 1 kW, 220 V, single phase, LXM26D servo drive 1 kW, 220 V, three phase, LXM28... servo drive 1 kW, 220 V, single phase |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1504002EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1504002EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | single phase, three phase |
|---|---|
| Range Of Product | Lexium 28 |
| Product Or Component Type | servo motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Nominal Output Power | 1000 W LXM28... 7 A, 220 V, three phase1000 W LXM26D 7 A, 220 V, single phase, 1000 W LXM26D 7 A, 220 V, three phase, 1000 W LXM28... 7 A, 220 V, single phase |
|---|
| Output Current 3s Peak | 20.0 A |
|---|
