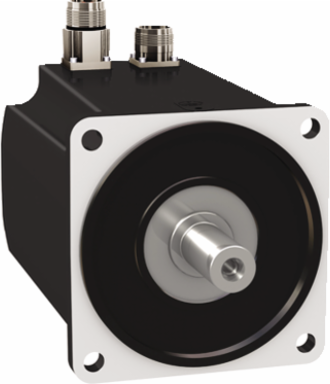

Schneider Electric BMH1401P32F1A Servo Motor Lexium 32 10.3Nm 4000rpm Keyed Shaft IP65/IP67
Schneider Electric BMH1401P32F1A Servo Motor Lexium 32 10.3Nm 4000rpm Keyed Shaft IP65/IP67
- MPN: BMH1401P32F1A
- PPN: SCH-BMH1401P32F1A
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3780.71/ EA
Description
Crafted for optimal performance in demanding environments, this servo motor from Schneider Electric features an impressive torque rating of 10.3Nm and operates at a remarkable speed of 4000rpm. Designed with a keyed shaft, it ensures reliable connectivity and precise movement, making it an excellent choice for a wide range of automation and control applications. With its robust IP65/IP67 rating, this motor is protected against dust and water ingress, enhancing its durability and functionality in industrial settings. Ideal for those seeking reliability and efficient motion control, this Lexium 32 motor stands out for its engineering excellence and versatility in various applications.
Specifications
- Maximum Mechanical Speed
- 4000 rpm
- Peak Stall Torque
- 30.8 N.m
- Nominal Torque
- 6.9 N.m (230 V single phase), 7.7 N.m (400-480 V three phase)
- Continuous Stall Current
- 8.58 A
- Maximum Permanent Current
- 29.8 A
- Torque Constant
- 1.2 N.m/A
- Number Of Motor Poles
- 10
- Stator Resistance
- 0.69 Ohm
- Stator Electrical Time Constant
- 9.7 ms
- Maximum Axial Force Fa
- 0.2 x Radial Force
- Type Of Cooling
- natural convection
- Rated Supply Voltage
- 480 V
- Type
- servo motor
- Shaft Diameter
- 24 mm
- Key Width
- 40 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 165 mm
- Centring Collar Depth
- 3.5 mm
- Holding Brake
- with
- Mounting Support
- international standard flange
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
- Number Of Motor Stacks
- 1
- REACH Compliance
- Contains SVHC above threshold
- PVC Free
- Yes
- Country of Origin
- DE
Continuous Stall Torque10.3 N.m
Nominal Output Power1450 W (230 V single phase), 2400 W (400-480 V three phase)
Nominal Speed2000 rpm (230 V single phase), 3000 rpm (400-480 V three phase)
Maximum Current Irms29.8 A
Holding Torque18 N.m holding brake
Back EMF Constant77.4 V/krpm
Rotor Inertia17.96 kg.cm²
Stator Inductance6.7 mH
Maximum Radial Force Fr1930 N @ 1000 rpm, 1530 N @ 2000 rpm, 1340 N @ 3000 rpm
Brake Pull-In Power18 W
Continuous Power2.85 W
Phasethree phase
Length187 mm
Shaft Length50 mm
Motor Flange Size140 mm
Mounting Holes Diameter11 mm
Centring Collar Diameter130 mm
Shaft Endkeyed
Product CompatibilityLXM32.D30M2 230 V single phase, LXM32.D30N4 400-480 V three phase
Electrical Connectionstraight connectors
Feedback Typemultiturn SinCos Hiperface
Net Weight10.3 kg
RoHS CompliancePro-active (out of EU RoHS legal scope), China RoHS compliant, Exemption information available
Mercury FreeYes
