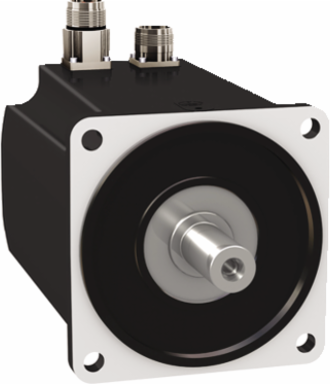

Schneider Electric BMH1401P31A1A Servo Motor Lexium 32 10.3Nm 4000rpm Keyed Shaft IP65/IP67
- MPN: BMH1401P31A1A
- PPN: SCH-BMH1401P31A1A
CAD
$2811.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This servo motor from Schneider Electric is engineered for precision and reliability, making it an excellent choice for automation and control applications. With a robust design that features a keyed shaft and a high-speed capability of 4000 RPM, it can effectively manage demanding tasks in motion control environments. Its IP65/IP67 rating ensures durability and resistance against dust and moisture, enhancing operational longevity. This model not only elevates performance but also meets the rigorous standards required in industrial settings, providing a dependable solution for various automation needs.
Documentation & Downloads
Specifications
Additional
- Type
- servo motor
- Peak Stall Torque
- 30.8 N.m
- Nominal Output Power
- 1450 W, 2400 W
- Maximum Mechanical Speed
- 4000 rpm
- Maximum Current Irms
- 29.8 A
- Torque Constant
- 1.2 N.m/A
- Number Of Motor Poles
- 10
- Stator Resistance
- 0.69 Ohm 20 °C
- Stator Electrical Time Constant
- 9.7 ms 20 °C
- Maximum Axial Force
- 0.2 x radial force
- Voltage
- 480 V
- Length
- 152 mm (5.98 in.)
- Shaft Length
- 50 mm (1.97 in.)
- Motor Flange Size
- 140 mm (5.51 in.)
- Centring Collar Depth
- 3.5 mm (0.14 in.)
- Mounting Holes Diameter
- 11 mm (0.43 in.)
- Shaft End
- keyed
- Mounting Support
- international standard flange
- Holding Brake
- without
- Net Weight
- 8 kg (17.64 lb)
- RoHS Compliance
- yes
- Mercury Free
- yes
- WEEE
- Must be disposed following EU waste collection regulations
- Warranty
- 18 months
Nominal Torque6.9 N.m, 7.7 N.m
Continuous Stall Torque10.3 N.m
Nominal Speed2000 rpm, 3000 rpm
Continuous Stall Current8.58 A
Maximum Permanent Current29.8 A
Back Emf Constant77.4 V/krpm
Rotor Inertia16.46 kg.cm²
Stator Inductance6.7 mH 20 °C
Maximum Radial Force1930 N at 1000 rpm, 1530 N at 2000 rpm, 1340 N at 3000 rpm
Type Of CoolingNatural convection
Phasethree phase
Shaft Diameter24 mm (0.94 in.)
Key Width40 mm (1.57 in.)
Centring Collar Diameter130 mm (5.12 in.)
Number Of Mounting Holes4
Circle Diameter Of Mounting Holes165 mm (6.50 in.)
Electrical Connectionstraight connectors
Feedback Typesingle turn SinCos Hiperface
Number Of Motor Stacks1
Country Of OriginGermany
Pvc Freeyes
Prop 65 ComplianceComplies with EU and China RoHS, Reach regulations
Sustainable Offer StatusGreen Premium product
