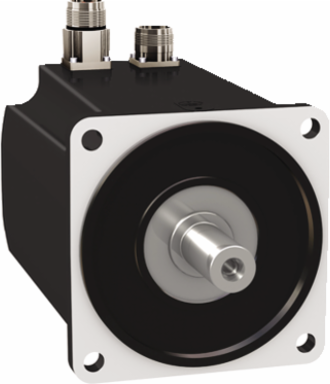

Schneider Electric BMH1401P37F1A Lexium 32 Servo Motor 10.3Nm, 4000rpm, Keyed Shaft, IP65/IP67
Schneider Electric BMH1401P37F1A Lexium 32 Servo Motor 10.3Nm, 4000rpm, Keyed Shaft, IP65/IP67
- MPN: BMH1401P37F1A
- PPN: SCH-BMH1401P37F1A
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3456.34/ EA
Description
Designed for precision and efficiency in motion control applications, the Lexium 32 Servo Motor from Schneider Electric features a robust 10.3Nm torque at 4000rpm, making it an ideal choice for diverse automation tasks. Its keyed shaft ensures secure connections in your system, while the IP65/IP67 rating provides excellent protection against dust and moisture, ensuring reliable performance even in challenging environments. This servo motor is engineered to meet the demanding requirements of modern automation, making it a crucial component for optimizing processes in industrial applications.
Specifications
- Maximum Mechanical Speed
- 4000 rpm
- Maximum Permanent Current
- 29.8 A
- Continuous Power
- 2.85 W
- Holding Torque
- 18 N.m holding brake
- Nominal Torque
- 6.9 N.m to 7.7 N.m depending on model
- Phase
- three phase
- Feedback Type
- multiturn SinCos Hiperface
- Back EMF Constant
- 77.4 V/krpm at 120 °C
- Maximum Axial Force
- 0.2 x Radial Force
- Holding Brake
- with
- Type of Cooling
- natural convection
- Shaft Length
- 50 mm (1.97 in)
- Key Width
- 40 mm (1.57 in)
- Number of Motor Stacks
- 1
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 165 mm (6.50 in)
- Centering Collar Depth
- 3.5 mm (0.14 in)
- Electrical Connection
- straight connectors
- Stator Resistance
- 0.69 Ohm at 20 °C
- Stator Electrical Time Constant
- 9.7 ms at 20 °C
- Mounting Support
- international standard flange
- Compliance
- Green Premium, REACh, RoHS, Mercury free, PVC free, EU RoHS exempt
- Mercury Free
- Yes
Continuous Stall Current8.58 A
Maximum Current Irms29.8 A
Torque10.3 N.m
Peak Stall Torque30.8 N.m
Rated Supply Voltage480 V
Speed Feedback Resolution32768 points/turn x 4096 turns
Torque Constant1.2 N.m/A at 120 °C
Maximum Radial Force1930 N at 1000 rpm, 1530 N at 2000 rpm, 1340 N at 3000 rpm
Brake Pull-In Power18 W
Nominal Output Power1450 W (single phase 230 V), 2400 W (three phase 400-480 V) depending on model
Length187 mm (7.36 in)
Shaft Diameter24 mm (0.94 in)
Motor Flange Size140 mm (5.51 in)
Number of Motor Poles10
Mounting Holes Diameter11 mm (0.43 in)
Centering Collar Diameter130 mm (5.12 in)
Shaft Endkeyed
Rotor Inertia17.96 kg.cm²
Stator Inductance6.7 mH at 20 °C
Nominal Speed2000 rpm (single phase 230 V) to 3000 rpm (three phase 400-480 V depending on model)
Ip Degree Of ProtectionIP65 standard; IP67 with IP67 kit
Pvc FreeYes
Country of OriginGermany
