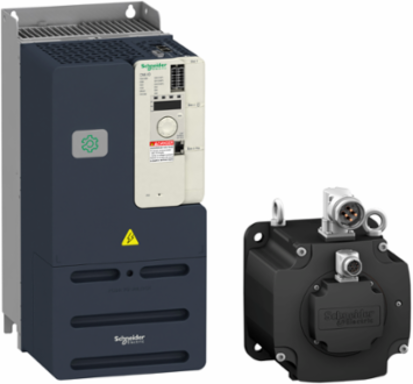

Schneider Electric LXM32MC10N4 Lexium 32 Motion Servo Drive 11kW, 100A, 3-Phase, IP20
- MPN: LXM32MC10N4
- PPN: SCH-LXM32MC10N4
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 40A at 4kHz and a continuous power of 11000W at 400V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. It is an IP20 rated product. Its dimensions are 180mm (Width) x 240mm (Depth) x 385mm (Height). It weighs 9.6kg. This product is certified by CE and CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BMH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, United States |
|---|
| Depth | 240 mm |
|---|
Communications & Management Attributes
| Communication Interface | Modbus TCP, with separated communication card, CANopen, with separated communication card, CANmotion, with separated communication card, Ethernet/IP, with separated communication card, EtherCAT, with separated communication card, Profibus, with separated communication card, Profinet, with separated communication card, Analog I/O, with separated communication cardDigital I/O, Integrated |
|---|
Complementary Attributes
| Line Rated Current | 24.0 A |
|---|---|
| Maximum Current Irms | 82.0 A |
| Maximum Operational Altitude | 2000.0 m |
| Maximum Ambient Air Temperature For Operation | 50.0 °C |
|---|---|
| Maximum Leakage Current | 30 mA |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Contact Bounce Time | <= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B |
| Nominal Voltage | 208 V three phase, 400 V three phase, 480 V three phase |
| Supply Voltage | 200-240 V three phase, 380-480 V three phase |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 4.831054755, 5 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 95 kg CO2 eq., 95.2083097983 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Compatibility Code | LXM32M |
| Derating Altitude Scale | 90.0 m |
| Device Short Name | LXM32M |
| Electrical Connection | terminal 8 mm², 8 AWG CN8) |
| Electromagnetic Compatibility | conducted EMC, class A group 1 EN 55011 |
| Emc Filter Compatibility | type 023 |
| Field Weakening | false |
| Line Current | 23.3 A 140 % 480 V, without line choke32 A 54 % 480 V, with external line choke 0.5 mH38.1 A 70 % 480 V, with external line choke 0.5 mH |
| Maximum Operational Altitude | 2000.0 m |
| Network Frequency | 47.5...63 Hz |
| Nominal Power | 11 kW 400 V 4 kHz11 kW 480 V 8 kHz |
| Overvoltage Category | III |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Type | against reverse polarity inputs signal |
| Returnability | Yes |
| Safety Level | SIL 3 EN/IEC 61508 |
| Shock Resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Software Version | EIME v5.8.1 |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Supply Voltage Limits | 323-528 V |
| Switching Frequency | 4 kHz |
| Total Lifecycle Carbon Footprint | 16 196 kg CO2 eq. |
| Type Of Cooling | integrated fan |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 385 mm |
| Certificate Agency | CSA |
| Maximum [In] Rated Current | 24.0 A |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 40875 |
| Customs Code | 8504404000 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Continuous Power | 11000 W 400 V, 11000 W 480 V |
| Response Time | <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B |
| Carbon Footprint Of The Distribution Phase [A4] | 1.3351193876, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.1 kg CO2 eq., 0.0621010468 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 16 095 kg CO2 eq., 16094.5229681979 |
| Local Publishable Date | 2025-12-12 |
| Stocking Flag | N |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI110605EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1907 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Braking Current | 50 mA |
| Control Signal Type | pulse train output (PTO) RS422 <500 kHz <100 m |
| Derating Altitude Start | 1000.0 m |
| Drive Voltage Drop Coefficient | 0.95 |
| Electrical Isolation | between power and control |
| Emc Filter | integrated |
| Environmental Characteristic | classes 3C1 conforming to IEC 60721-3-3 |
| Format Of The Drive | book |
| Marking | CE |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Network Number Of Phases | 3 |
| Operating Position | vertical +/- 10 degree |
| Phase | three phase |
| Product Or Component Type | motion servo drive |
| Range Of Product | Lexium 32 |
| Safety Function | STO (safe torque off), Integrated |
| Sampling Duration | 0.25 ms |
| Signalling Function | display of faults 7 segments |
| Status Led | 1 LED (Red) servo drive voltage |
| Supply Voltage Description | three phase 230 V |
| Sustainable Packaging | Yes |
| Tightening Torque | CN8 3.8-3.8 N.m |
| Type Of Cable | single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR |
| Vibration Resistance | 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6 |
| Pep Code | ENVPEP110705EN |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 32850 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Width Nominal | 180 mm |
| [Us] Rated Supply Voltage | 480 V380...480 V - 15...10 % |
| Number Of Inputs/Outputs | 4 DI + 2 CI + 3 DO |
| Package Weight(Lbs) | 10.348 kg |
| Warranty (In Months) | 18 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 40875 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Product Compatibility | servo motor BMH 190 mm, 1, servo motor BMH 190 mm, 2, servo motor BMH 190 mm, 3, servo motor BMH 190 mm, 4 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-50 °C UL |
| Environmental Disclosure | ENVPEP110705EN |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 16195.9595531856 |
| Circularity Profile | ENVEOLI110605EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP110705EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | three phase |
|---|---|
| Range Of Product | Lexium 32 |
| Product Or Component Type | motion servo drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Discrete Output Voltage | <= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC |
|---|---|
| Output Voltage | <= power supply voltage, <= power supply voltage |
| Discrete Output Logic | positive or negative DO)EN/IEC 61131-2 |
| Discrete Output Type | logic DO)24 V DC |
| Output Current 3s Peak | 82.0 A, 100 A 480 V 5 s |
|---|---|
| Continuous Output Current | 40 A 4 kHz |
| Discrete Output Number | 3 |
| Response Time On Output | 250 µs DO)discrete |
Surge Protection And Filtering Attributes
| Emc Filter | integrated |
|---|
| Emc Filter Compatibility | type 023 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Logic | positive compliment of STO_A, compliment of STO_B) 15 V EN/IEC 61131-2 type 1 |
|---|---|
| Discrete Input Type | capture CAP |
| Discrete Input Number | 2 capture |
|---|---|
| Discrete Input Voltage | 24 V DC capture |
