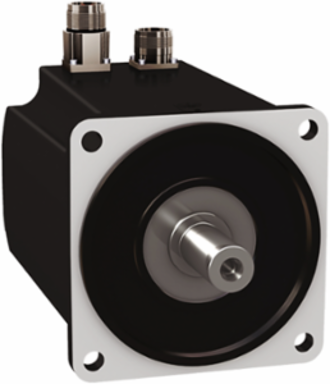

Schneider Electric BMH1402P22F1A Lexium 32 Servo Motor 18.5 Nm 4000 rpm IP65/IP67
Schneider Electric BMH1402P22F1A Lexium 32 Servo Motor 18.5 Nm 4000 rpm IP65/IP67
- MPN: BMH1402P22F1A
- PPN: SCH-BMH1402P22F1A
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4046.88/ EA
Description
The Schneider Electric Lexium 32 Servo Motor is engineered to provide exceptional motion control in demanding environments, boasting a powerful torque of 18.5 Nm and a maximum speed of 4000 rpm. Its robust design offers protection rated at IP65/IP67, making it suitable for use in applications where dust and water exposure are a concern. With a focus on reliability and precision, this servo motor is an excellent choice for automation and control systems, delivering seamless performance in a variety of industrial settings.
Specifications
- Torque
- 18.5 N.m (163.74 lbf.in continuous stall), 50.3 N.m (445.19 lbf.in peak stall)
- Nominal Output Power
- 3500 W
- Nominal Speed
- 3000 rpm
- Continuous Stall Current
- 16.83 A
- Holding Torque
- 18 N.m (159.31 lbf.in)
- Cooling Type
- Natural convection
- Shaft Diameter
- 24 mm (0.94 in)
- Mounting Flange Size
- 140 mm (5.51 in)
- Number of Motor Stacks
- 2
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Mounting Holes Diameter
- 11 mm (0.43 in)
- Net Weight
- 14.3 kg (31.53 lb)
- Stator Inductance
- 3 mH @ 20 °C
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
- Torque Constant
- 1.1 N.m/A @ 120 °C
- Rated Supply Voltage
- 480 V
- Mounting Support
- International standard flange
- Holding Brake
- Yes
- RoHS Exemption Information
- Yes
- China RoHS Regulation
- X
- WEEE
- Must be disposed according to EU waste collection
- Environmental Disclosure
- ENVPEP111002EN
- Maximum Axial Force Fa
- 0.2 x Fr
- Product or Component Type
- Servo motor
- Range Compatibility
- Lexium 32
- Electrical Connection
- Straight connectors
Maximum Speed4000 rpm
Nominal Torque12.2 N.m (107.98 lbf.in)
Rated Supply Voltage480 V
Maximum Current Irms57.4 A
Brake Pull-in Power18 W
Length227 mm (8.94 in)
Shaft Length50 mm (1.97 in)
Number of Motor Poles10
Centring Collar Diameter130 mm (5.12 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes165 mm (6.50 in)
Stator Resistance0.23 Ohm @ 20 °C
Stator Electrical Time Constant13 ms @ 20 °C
Feedback TypeMultiturn SinCos Hiperface
Back EMF Constant70.7 V/krpm @ 120 °C
PhaseThree phase
Shaft EndSmooth shaft
IP Degree of ProtectionIP65 standard, IP67 with kit
EU RoHS DirectivePro-active compliance (product out of EU RoHS legal scope)
PVC FreeYes
Reach RegulationContains SVHC above threshold
Mercury FreeYes
Maximum Radial Force Fr2240 N @ 1000 rpm, 1780 N @ 2000 rpm, 1550 N @ 3000 rpm
Device Short NameBMH
Product CompatibilityLXM32.D72N4 400–480 V three phase
Warranty18 months
