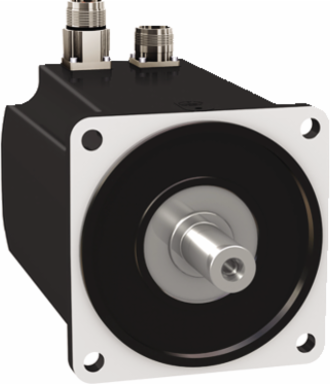

Schneider Electric BMH1402P27F1A Lexium 32 Servo Motor 18.5Nm 4000rpm IP65/IP67
- MPN: BMH1402P27F1A
- PPN: SCH-BMH1402P27F1A
CAD
$3835.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Lexium 32 Servo Motor from Schneider Electric stands out with its impressive torque output of 18.5Nm and a rapid operating speed of 4000rpm, making it an excellent choice for demanding automation and control applications. Engineered to provide high performance and reliability, this servo motor is designed to operate in challenging environments, featuring a robust IP65/IP67 rating that ensures protection against dust and water ingress. Ideal for a variety of motion control needs, its innovative design is a testament to Schneider Electric's commitment to advancing automation technology, setting the standard for efficiency and precision in motion control systems.
Documentation & Downloads
Specifications
Additional
- Torque
- 50.3 N.m peak, 18.5 N.m continuous
- Nominal Speed
- 3000 rpm
- Continuous Stall Current
- 16.83 A
- Rated Supply Voltage
- 480 V
- Maximum Radial Force
- 2240 N at 1000 rpm, 1780 N at 2000 rpm, 1550 N at 3000 rpm
- Brake Pull-in Power
- 18 W
- Shaft Diameter
- 24 mm (0.94 in)
- Motor Flange Size
- 140 mm (5.51 in)
- Circle Diameter of Mounting Holes
- 165 mm (6.50 in)
- Centring Collar Diameter
- 130 mm (5.12 in)
- Net Weight
- 14.3 kg (31.53 lb)
- Number of Motor Poles
- 10
- Feedback Type
- Multiturn SinCos Hiperface
- Electrical Connection
- Straight connectors
- Back EMF Constant
- 70.7 V/krpm at 120 C
- Stator Resistance
- 0.23 Ohm at 20 C
- Stator Electrical Time Constant
- 13 ms at 20 C
- IP Degree of Protection
- IP65 standard, IP67 with IP67 kit
- PVC Free
- Yes
- REACH Regulation
- Contains Substances of Very High Concern above threshold
- Sustainable Offer Status
- Green Premium product
Nominal Output Power3500 W
Maximum Mechanical Speed4000 rpm
Maximum Current Irms57.4 A
PhaseThree phase
Maximum Axial Force0.2 x radial force
Length227 mm (8.94 in)
Shaft Length50 mm (1.97 in)
Mounting Holes Diameter11 mm (0.43 in)
Number of Mounting Holes4
Centring Collar Depth3.5 mm (0.14 in)
Number of Motor Stacks2
Holding BrakeWith
Mounting SupportInternational standard flange
Torque Constant1.1 N.m/A at 120 C
Rotor Inertia33.5 kg.cm
Stator Inductance3 mH at 20 C
Type of CoolingNatural convection
Mercury FreeYes
RoHS ExemptionYes
China RoHS RegulationCompliant
Country of OriginGermany
