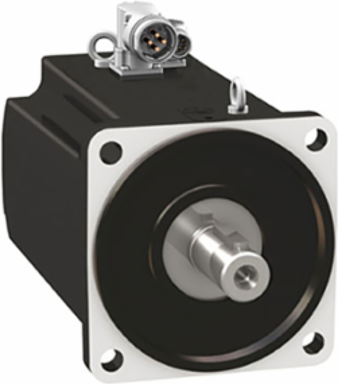

Schneider Electric BMH2053P12A2A servo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP54, 128 multiturn encoder
- MPN: BMH2053P12A2A
- PPN: SCH-BMH2053P12A2A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
servo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP54, 128 multiturn encoder
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France |
|---|
Physical Attributes
| Key Width | 70 mm |
|---|---|
| Shaft Length | 80 mm |
| Motor Flange Size | 205 mm |
|---|
Complementary Attributes
| Maximum Axial Force Fa | 0.2 x Fr |
|---|---|
| Maximum Mechanical Speed | 3800 rpm |
| Maximum Radial Force Fr | 4500 N 1000 rpm3570 N 2000 rpm3120 N 3000 rpm |
| Maximum Current Irms | 72 A LXM32.D72N4 |
|---|---|
| Maximum Permanent Current | 107.4 A |
Important Information Attributes
| Coefficient 1 1 | -0.0215000000002362 N.m/rpm, -0.0215000000002362 N.m/rpm |
|---|---|
| Coefficient 1 5 | -9.19815108E-26 N.m/rpm5, -9.19815108E-26 N.m/rpm5 |
| Nominal Speed | 1200 rpm LXM32.D72N4 24 A, 400 V, three phase, 1200 rpm LXM32.D72N4 24 A, 480 V, three phase |
| Peak Stall Torque | 232 N.m LXM32.D72N4 24 A, 400 V, three phase, 232 N.m LXM32.D72N4 24 A, 480 V, three phase |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Centring Collar Diameter | 180 mm |
| Coefficient 1 2 | 7.126929575716E-16 N.m/rpm² |
| Coefficient 1 6 | 8.0361E-30 N.m/rpm6 |
| Continuous Power | 9.6 W |
| Device Short Name | BMH |
| Feedback Type | multiturn SinCos Hiperface |
| Motor Voltage Drop Coefficient | 1 |
| Mounting Support | international standard flange |
| Number Of Motor Poles | 10 |
| Number Of Mounting Holes | 4 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Second Shaft | without second shaft end |
| Shaft End | keyed |
| Speed Feedback Resolution | 131072 points/turn x 4096 turns |
| Stator Inductance | 6.9 mH 20 °C |
| Sustainable Packaging | No |
| Temperature Magnet Hot | 100 °C |
| Torque Constant | 3.5 N.m/A 120 °C |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Length Total | 489 mm |
| Accuracy Error [Angular] | 1.4 ° |
| Package Weight(Lbs) | 71.0 kg |
| Warranty (In Months) | 18 |
| Coefficient 1 3 | -7.877844225E-19 N.m/rpm3, -7.877844225E-19 N.m/rpm3 |
|---|---|
| Continuous Stall Torque | 84 N.m LXM32.D72N4 24 A, 400 V, three phase, 84 N.m LXM32.D72N4 24 A, 480 V, three phase |
| Nominal Torque | 52.2 N.m LXM32.D72N4 24 A, 400 V, three phase, 52.2 N.m LXM32.D72N4 24 A, 480 V, three phase |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1905 |
| China Rohs In Scope | Yes |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 215 mm |
| Coefficient 1 4 | 3.957464E-22 N.m/rpm4 |
| Coefficient 2 1 | 0 N.m/rpm |
| Continuous Stall Current | 25.2 A |
| Electrical Connection | rotatable right-angled connectors |
| Holding Brake | without |
| Mounting Holes Diameter | 14 mm |
| Network Number Of Phases | 3 |
| Number Of Motor Stacks | 3 |
| Phase | three phase |
| Product Or Component Type | servo motor |
| Rotor Inertia | 190 kg.cm² |
| Shaft Diameter | 38 mm |
| Sizing Reference | BMH2053P |
| Stator Electrical Time Constant | 21.6 ms 20 °C |
| Stator Resistance | 0.32 Ohm 20 °C |
| Temperature Copper Hot | 135 °C |
| Temperature Magnet Rt | 20 °C |
| Type Of Cooling | natural convection |
| Pep Code | ENVPEP111049EN |
| [Us] Rated Supply Voltage | 480 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8501524000 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP111049EN |
| Ip Degree Of Protection | IP54 standard |
| Pep Code | ENVPEP111049EN |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Product Compatibility | LXM32.D72N4 400...480 V three phase |
General Attributes
| Phase | three phase |
|---|
| Product Or Component Type | servo motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Nominal Output Power | 6500 W LXM32.D72N4 24 A, 400 V, three phase, 6500 W LXM32.D72N4 24 A, 480 V, three phase |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
