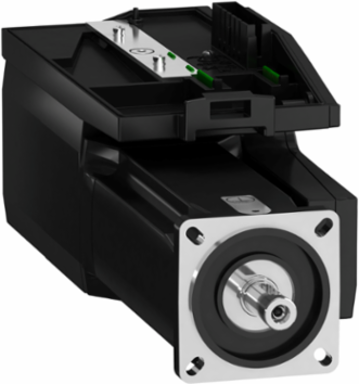

Schneider Electric BMI0703P17F Servo Motor 900W 3-Phase, IP54, 32968 p/t x 4096 t, Keyed
- MPN: BMI0703P17F
- PPN: SCH-BMI0703P17F
CAD
$2747.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This servo motor from Schneider Electric stands out for its robust performance and versatility in motion control applications. With a power rating of 900W and a 3-phase design, it is engineered to handle demanding automation tasks efficiently. The IP54 rating ensures protection against dust and water splashes, making it suitable for various industrial environments. Featuring a precision resolution of 32,968 p/t and a 4,096 t count, this motor delivers exceptional control and accuracy necessary for intricate movements. Its keyed design enhances reliability in operation, ensuring that it remains securely connected during use.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 900 W 400 V three phase || 900 W 480 V three phase || 450 W 208 V three phase
- Peak Output Current
- 6 A 400 V 3 s
- Peak Stall Torque
- 8.6 N.m 208 V three phase || 8.6 N.m 400 V three phase || 8.6 N.m 480 V three phase
- Maximum Mechanical Speed
- 8000 rpm
- Torque Constant
- 1.41 N.m/A 20 0C
- Number Of Motor Poles
- 10
- Stator Inductance
- 25.6 mH 20 0C
- Network Number Of Phases
- three phase
- Supply Frequency
- 50/60 Hz -5...5 %
- Shaft Diameter
- 14 mm
- Key Width
- 5 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 75-82 mm
- Centring Collar Depth
- 2.5 mm
- Shaft End
- keyed
- Holding Torque
- 3 N.m holding brake
- Emc Filter
- integrated
- Feedback Type
- absolute multiturn SinCos Hiperface
- Product Or Component Type
- servo motor with power stage
- Product Compatibility
- drive control unit LXM32i CANopen || drive control unit LXM32i EtherCAT
- Sustainable Offer Status
- Green Premium product
- Environmental Disclosure
- ENVPEP1312017EN
- China RoHS Regulation
- Yes
Continuous Output Current2 A 8 kHz
Continuous Stall Torque3.4 N.m 208...480 V three phase
Nominal Speed1600 to 3900 rpm
Maximum Current Irms12.5 A 400 V, three phase || 12.5 A 480 V, three phase || 12.5 A 208 V, three phase
Back Emf Constant95.39 V/krpm 20 0C
Stator Resistance7.99 Ohm 20 0C
Stator Electrical Time Constant3.2 ms 20 0C
Supply Voltage Limits208-480 V
Length339 mm
Shaft Length30 mm
Motor Flange Size70 mm
Mounting Holes Diameter5.5 mm
Centring Collar Diameter60 mm
Distance Shaft Shoulder-Flange2.5 mm
Type Of Coolingnatural convection
Brake Pull-In Power5 W
Electrical Connectionprinted circuit board connector
Number Of Motor Stacks3
Range CompatibilityLexium 32i
Warranty18 months
RoHS CompliancePro-active compliance; PVC Free; Mercury Free
Reach RegulationContains SVHC above threshold
