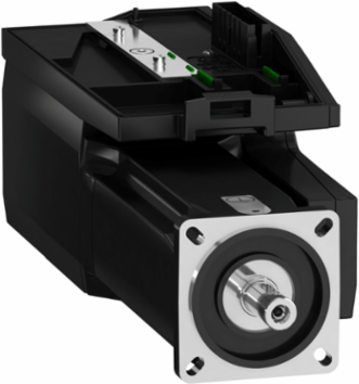

Schneider Electric BMI0703P37A Servo Motor IP65 Keyed 3-Phase 900W 3300 RPM
- MPN: BMI0703P37A
- PPN: SCH-BMI0703P37A
CAD
$2549.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and reliability, this servo motor from Schneider Electric stands out with its robust IP65 rating, ensuring it can operate efficiently in challenging environments. With a power output of 900 watts and capable of reaching speeds of up to 3300 revolutions per minute, it is well-suited for a range of automation and control applications where performance and durability are paramount. Its three-phase design enhances operational stability, making it a valuable component in motion control systems that demand accountability and speed.
Documentation & Downloads
Specifications
Additional
- Supply Voltage
- 208-480 V three phase
- Continuous Output Current
- 2 A at 8 kHz
- Nominal Output Power
- 900 W at 400 V, 480 V; 450 W at 208 V
- Maximum Mechanical Speed
- 8000 rpm
- Continuous Stall Torque
- 3.4 N.m (30.09 lbf.in) 208-480 V three phase
- Nominal Torque
- 2.9 N.m (25.67 lbf.in) at 208 V three phase
- Back EMF Constant
- 95.39 V/krpm at 20 °C
- Rotor Inertia
- 1.67 kg.cm²
- Stator Inductance
- 25.6 mH at 20 °C
- Maximum Radial Force
- 730 N at 1000 rpm (also 580 N at 2000 rpm, 510 N at 3000 rpm, 460 N at 4000 rpm, 430 N at 5000 rpm, 400 N at 6000 rpm)
- Length
- 300 mm (11.81 in)
- Shaft Length
- 30 mm (1.18 in)
- Centring Collar Diameter
- 60 mm (2.36 in)
- Motor Flange Size
- 70 mm (2.76 in)
- Mounting Holes Diameter
- 5.5 mm (0.22 in)
- Distance Shaft Shoulder-Flange
- 2.5 mm (0.10 in)
- Feedback Type
- Absolute multiturn SinCos Hiperface
- Mounting Support
- International standard flange
- IP Rating
- IP65
- PVC Free
- Yes
- Warranty
- 18 months
- Second Shaft
- Without second shaft end
- Product Compatibility
- Drive control unit LXM32i CANopen, LXM32i EtherCAT
- Circularity Profile
- ENVEOLI1312017EN
Supply Frequency50/60 Hz
Peak Output Current6 A for 3 s at 400 V
Nominal Speed3300 rpm at 400 V, 1600 rpm at 208 V, 3900 rpm at 480 V
Maximum Current Irms12.5 A
Peak Stall Torque8.6 N.m (76.12 lbf.in) at 208-480 V three phase
Torque Constant1.41 N.m/A at 20 °C
Number of Motor Poles10
Stator Resistance7.99 Ohm at 20 °C
Stator Electrical Time Constant3.2 ms at 20 °C
Maximum Axial Force0.2 x Radial Force
Shaft Diameter14 mm (0.55 in)
Key Width5 mm (0.20 in)
Centring Collar Depth2.5 mm (0.10 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes75-82 mm (2.95-3.23 in)
Electrical ConnectionPrinted circuit board connector
Speed Feedback Resolution32768 points/turn x 4096 turns
Type of CoolingNatural convection
Mercury FreeYes
RoHS CompliancePro-active compliance (Product out of EU RoHS legal scope)
Device Short NameBMI
Holding BrakeWithout
Range CompatibilityLexium 32i
Environmental DisclosureENVPEP1312017EN
