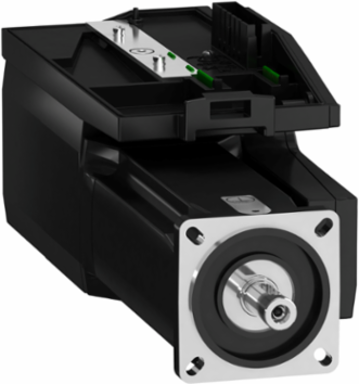

Schneider Electric BMI0703P17A Servo Motor 3-Phase IP54 Keyed 3300 RPM 900 W
- MPN: BMI0703P17A
- PPN: SCH-BMI0703P17A
CAD
$2510.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This servo motor from Schneider Electric is designed for robust performance in various automation and control applications. Featuring a durable IP54 rated enclosure, it effectively protects against dust and water, ensuring reliability even in challenging environments. With a powerful 900W output and the ability to reach speeds of up to 3300 RPM, it delivers precise motion control for demanding tasks. Ideal for industrial settings, this 3-phase motor's keyed design simplifies installation while maximizing operational efficiency, making it a valuable addition to your motion control solutions.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 208-480 V
- Network Frequency Limits
- 47.5-63 Hz
- Continuous Stall Torque
- 3.4 N.m
- Nominal Output Power
- 900 W (400 V, 480 V), 450 W (208 V)
- Nominal Speed
- 3300 rpm (400 V), 1600 rpm (208 V), 3900 rpm (480 V)
- Maximum Current Irms
- 12.5 A
- Torque Constant
- 1.41 N.m/A (20 °C)
- Number of Motor Poles
- 10
- Stator Resistance
- 7.99 Ohm (20 °C)
- Stator Electrical Time Constant
- 3.2 ms (20 °C)
- Maximum Axial Force
- 0.2 × Maximum Radial Force
- Shaft Diameter
- 14 mm (0.55 in)
- Key Width
- 5 mm (0.20 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 75-82 mm (2.95-3.23 in)
- Centering Collar Depth
- 2.5 mm (0.10 in)
- Shaft End
- Keyed
- Electrical Connection
- Printed circuit board connector
- Speed Feedback Resolution
- 32768 points/turn × 4096 turns
- Type of Cooling
- Natural convection
- RoHS Compliance
- Pro-active, Mercury free, Exemption: Yes
- EU RoHS Directive
- Pro-active compliance, out of EU RoHS legal scope
- Sustainable Offer Status
- Green Premium product
- Environmental Disclosure
- ENVPEP1312017EN
- Mercury Free
- Yes
- Product Type
- Servo motor with power stage
- Product Compatibility
- Drive control units LXM32i CANopen, LXM32i EtherCAT
Supply Frequency50/60 Hz
Continuous Stall Current2 A
Peak Stall Torque8.6 N.m
Nominal Torque2.9 N.m (208 V), 2.7 N.m (400 V), 2.3 N.m (480 V)
Maximum Mechanical Speed8000 rpm
Output Current Peak6 A 3 s
Back EMF Constant95.39 V/krpm (20 °C)
Rotor Inertia1.67 kg.cm²
Stator Inductance25.6 mH (20 °C)
Maximum Radial Force730 N @1000 rpm, decreasing to 400 N @6000 rpm
Length300 mm (11.81 in)
Shaft Length30 mm (1.18 in)
Motor Flange Size70 mm (2.76 in)
Mounting Holes Diameter5.5 mm (0.22 in)
Centering Collar Diameter60 mm (2.36 in)
Distance Shaft Shoulder-Flange2.5 mm (0.10 in)
Mounting SupportInternational standard flange
Feedback TypeAbsolute multiturn SinCos Hiperface
Holding BrakeWithout
IP Degree of ProtectionShaft IP54, Housing IP65
Pvc FreeYes
China RoHS RegulationYes
Circularity ProfileENVEOLI1312017EN
Reach RegulationContains SVHC above threshold
Device Short NameBMI
Range CompatibilityLexium 32i
Warranty18 months
