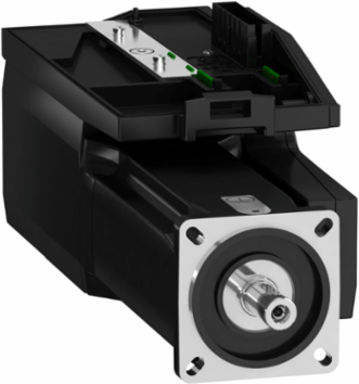

Schneider Electric BMI0703P37F Servo Motor 3-Phase, 900W, IP65, 32768 p/t x 4096 t, Brake
Schneider Electric BMI0703P37F Servo Motor 3-Phase, 900W, IP65, 32768 p/t x 4096 t, Brake
- MPN: BMI0703P37F
- PPN: SCH-BMI0703P37F
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2705.92/ EA
Description
Enhancing precision in motion control, this 3-phase servo motor from Schneider Electric is engineered for robust performance with a power output of 900W. Designed to operate efficiently under demanding conditions, it boasts an IP65 rating, ensuring protection against dust and water. The motor features an impressive resolution of 32,768 pulses per revolution, coupled with 4,096 torque increments, making it ideal for applications that require meticulous control. With the added functionality of a brake, this servo motor is well-suited for a variety of automation and control tasks, positioning it as a reliable choice for professionals in the field.
Specifications
- Rated Supply Voltage
- 208-480 V three phase
- Network Frequency Limits
- 47.5-63 Hz
- Output Current Peak
- 6 A 400 V 3 s
- Continuous Stall Torque
- 3.4 N.m 208-480 V three phase
- Nominal Output Power
- 900 W 400 V three phase, 900 W 480 V three phase, 450 W 208 V three phase
- Nominal Speed
- 3300 rpm 400 V three phase, 1600 rpm 208 V three phase, 3900 rpm 480 V three phase
- Shaft End
- Keyed
- Shaft Length
- 30 mm (1.18 in)
- Feedback Type
- Absolute multiturn SinCos Hiperface
- Holding Brake
- With
- Maximum Mechanical Speed
- 8000 rpm
- Motor Flange Size
- 70 mm (2.76 in)
- Torque Constant
- 1.41 N.m/A 20 B0C
- Number of Motor Poles
- 10
- Stator Resistance
- 7.99 Ohm 20 B0C
- Stator Electrical Time Constant
- 3.2 ms 20 B0C
- Maximum Axial Force
- 0.2 x Radial Force
- Type of Cooling
- Natural convection
- Number of Motor Stacks
- 3
- Centring Collar Depth
- 2.5 mm (0.10 in)
- Mounting Holes Diameter
- 5.5 mm (0.22 in)
- Distance Shaft Shoulder-Flange
- 2.5 mm (0.10 in)
- Compliance
- REACH, RoHS, Mercury Free
- Warranty
- 18 months
Supply Frequency50/60 Hz
Continuous Output Current2 A 8 kHz
Continuous Stall Current2 A
Peak Stall Torque8.6 N.m 208-480 V three phase
Nominal Torque2.9 N.m 208 V three phase, 2.7 N.m 400 V three phase, 2.3 N.m 480 V three phase
Maximum Current Irms12.5 A 208 V, 400 V, 480 V three phase
Shaft Diameter14 mm (0.55 in)
Key Width5 mm (0.20 in)
Speed Feedback Resolution32768 points/turn x 4096 turns
Holding Torque3 N.m holding brake
Mounting SupportInternational standard flange
Electrical ConnectionPrinted circuit board connector
Back EMF Constant95.39 V/krpm 20 B0C
Rotor Inertia1.78 kg.cmB2
Stator Inductance25.6 mH 20 B0C
Maximum Radial Force730 N @ 1000 rpm
Brake Pull-in Power5 W
Length339 mm (13.35 in)
Centring Collar Diameter60 mm (2.36 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes75-82 mm (2.95-3.23 in)
IP Degree of ProtectionIP65
Country of OriginGermany (DE)
