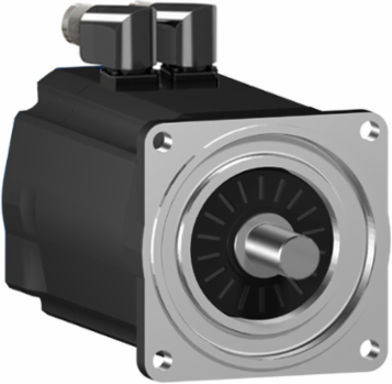

Schneider Electric SH31401P02A2000 Servo Motor 11.1 Nm, 4000 RPM, IP54/IP65, 2900 W
- MPN: SH31401P02A2000
- PPN: SCH-SH31401P02A2000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Experience precision and efficiency with this servo motor from Schneider Electric, designed for demanding automation and motion control applications. Featuring a robust torque of 11.1 Nm and a high-speed capability of 4000 RPM, it is well-suited for tasks that require reliable performance and rapid response. The IP54/IP65 rating ensures protection against dust and moisture, making this motor ideal for various industrial environments. With a power output of 2900 W, it guarantees the strength and reliability needed to drive sophisticated machinery and enhance your operational capabilities.
Documentation & Downloads
Specifications
Additional
- Power
- 2900 W
- Continuous Stall Torque
- 11.1 Nm
- Nominal Output Power
- 860 W (115 V single phase), 1670 W (230 V single phase), 2890 W (400 V three phase), 3170 W (480 V three phase)
- Nominal Speed
- 750 rpm (115 V single phase), 1500 rpm (230 V single phase), 3000 rpm (400 V three phase), 3600 rpm (480 V three phase)
- Maximum Current Irms
- 20.8 A
- Back Emf Constant
- 100 V/krpm at 20 °C
- Voltage
- 115...480 V
- Shaft Diameter
- 24 mm (0.94 in)
- Mounting Support
- International standard flange
- Electrical Connection
- Rotatable right angled connector
- Centring Collar Diameter
- 130 mm (5.12 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 165 mm (6.50 in)
- Number Of Motor Poles
- 5
- Rotor Inertia
- 7.41 kg.cm²
- Stator Inductance
- 23.72 mH
- Maximum Axial Force
- 300 N
- Speed Feedback Resolution
- 128 periods
- Mercury Free
- Yes
- RoHS Compliance
- Compliant (includes EU and China RoHS)
- Device Short Name
- SH3.....P
- Environmental Disclosure
- ENVPEP111049EN
- Product Type
- Servo motor
- Compliance Notes
- Reference contains Substances of Very High Concern above threshold
Maximum Mechanical Speed4000 rpm
Peak Stall Torque27 Nm
Nominal Torque8.4 Nm to 10.95 Nm
Continuous Stall Current7.8 A
Torque Constant1.43 N.m/A at 120 °C
Torque11.1 Nm
PhaseThree phase
Shaft Length50 mm (1.97 in)
Motor Flange Size140 mm (5.51 in)
Length217.5 mm (8.56 in)
Centring Collar Depth3.5 mm (0.14 in)
Mounting Holes Diameter11 mm (0.43 in)
Net Weight11.9 kg (26.24 lb)
Cooling TypeNatural convection
Stator Resistance1.41 Ohm
Maximum Radial Force1930 N at 1000 rpm, 1530 N at 2000 rpm, 1340 N at 3000 rpm
Encoder TypeAbsolute multiturn SinCos Hiperface
IP RatingIP54 shaft bushing without shaft seal ring; IP65 motor and shaft bushing, conforming to EN/IEC 60034-5
PVC FreeYes
Sustainable Offer StatusGreen Premium product
Warranty18 months
Range CompatibilityPacDrive 3
Shaft EndSmooth shaft
Country of OriginGermany
