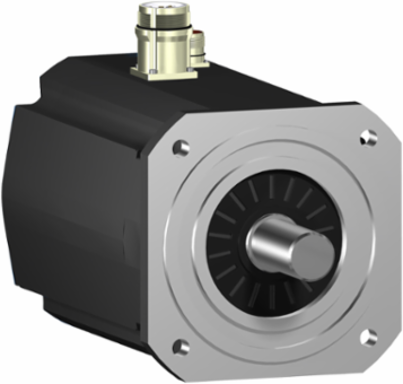

Schneider Electric SH32051P02F1000 Servo Motor 36.9 Nm, 3 Phase, 3.8k RPM, IP54/IP65
- MPN: SH32051P02F1000
- PPN: SCH-SH32051P02F1000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric SH32051P02F1000 servo motor stands out in the realm of motion control, delivering a robust performance with a torque rating of 36.9 Nm. Designed for three-phase operation, it operates efficiently at a high speed of 3.8k RPM, making it ideal for demanding automation applications. With an IP54/IP65 rating, this servo motor is well-protected against dust and moisture, ensuring reliable functionality in various industrial environments. Its precision engineering makes it a key component for enhancing the performance and reliability of automation systems.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 2510 W (115 V), 4240 W (230 V), 5500 W (400 V), 5200 W (480 V) three phase
- Continuous Stall Torque
- 36.9 N.m (115...480 V three phase)
- Nominal Torque
- 31.9 N.m (115 V), 27 N.m (230 V), 17.5 N.m (400 V), 13.8 N.m (480 V)
- Maximum Mechanical Speed
- 3800 rpm
- Continuous Stall Current
- 21 A
- Holding Torque
- 80 N.m
- Phase
- three phase
- Shaft End
- smooth shaft
- Shaft Length
- 80 mm (3.15 in)
- Motor Flange Size
- 205 mm (8.07 in)
- Centring Collar Depth
- 4 mm (0.16 in)
- Mounting Holes Diameter
- 14 mm (0.55 in)
- Net Weight
- 38.6 kg (85.1 lb)
- Electrical Connection
- straight connector
- Back EMF Constant
- 104 V/krpm (20 °C)
- Rotor Inertia
- 87.4 kg.cm²
- Stator Inductance
- 8.7 mH
- Maximum Axial Force
- 740 N
- IP Degree of Protection
- IP54 shaft bushing without shaft seal ring, IP65 motor and shaft bushing (EN/IEC 60034-5)
- Environmental Disclosure
- ENVPEP111049EN
- Reach Regulation
- Contains substances of very high concern above threshold
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Range Compatibility
- PacDrive 3
- Product Or Component Type
- servo motor
- Encoder Type
- absolute multiturn SinCos Hiperface
Continuous Power5500 W
Peak Stall Torque110 N.m (115...480 V three phase)
Nominal Speed750 rpm (115 V), 1500 rpm (230 V), 3000 rpm (400 V), 3600 rpm (480 V)
Maximum Current Irms87.2 A
Torque36.9 N.m
Holding Brakewith
Rated Supply Voltage115...480 V
Shaft Diameter38 mm (1.50 in)
Length370.5 mm (14.59 in)
Centring Collar Diameter180 mm (7.09 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes215 mm (8.46 in)
Mounting Supportinternational standard flange
Torque Constant1.6 N.m/A (120 °C)
Number of Motor Poles5
Stator Resistance0.3 Ohm
Maximum Radial Force3730 N (1000 rpm), 2960 N (2000 rpm), 2580 N (3000 rpm)
Type of Coolingnatural convection
ComplianceREACH, RoHS, China RoHS, Mercury free, PVC free
Eu Rohs DirectivePro-active compliance (product out of EU RoHS legal scope)
China Rohs RegulationCompliant
Mercury FreeYes
WeeeMust be disposed per EU waste collection requirements
Device Short NameSH3.....P
Sustainable Offer StatusGreen Premium product
Speed Feedback Resolution128 periods
